Module Light

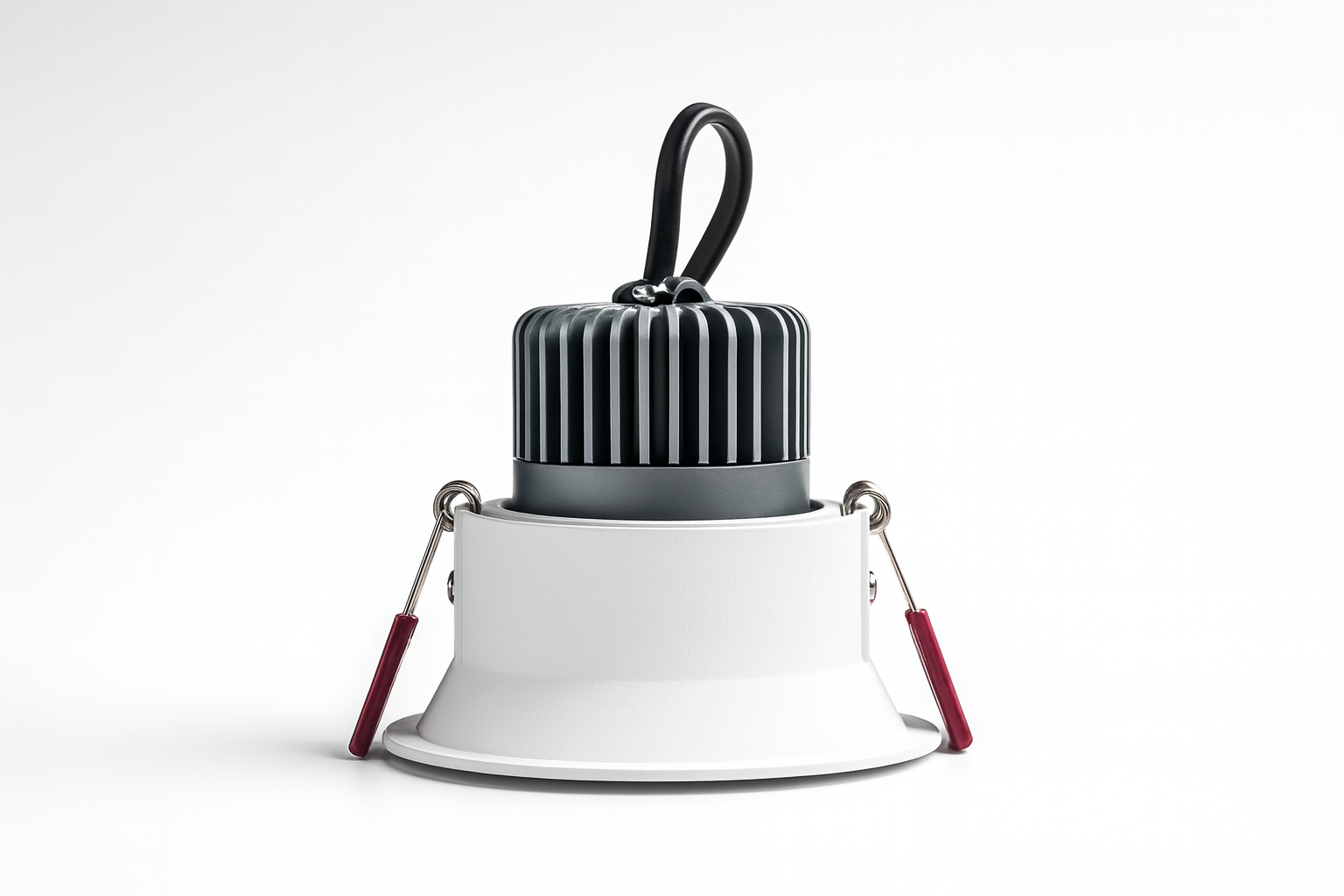

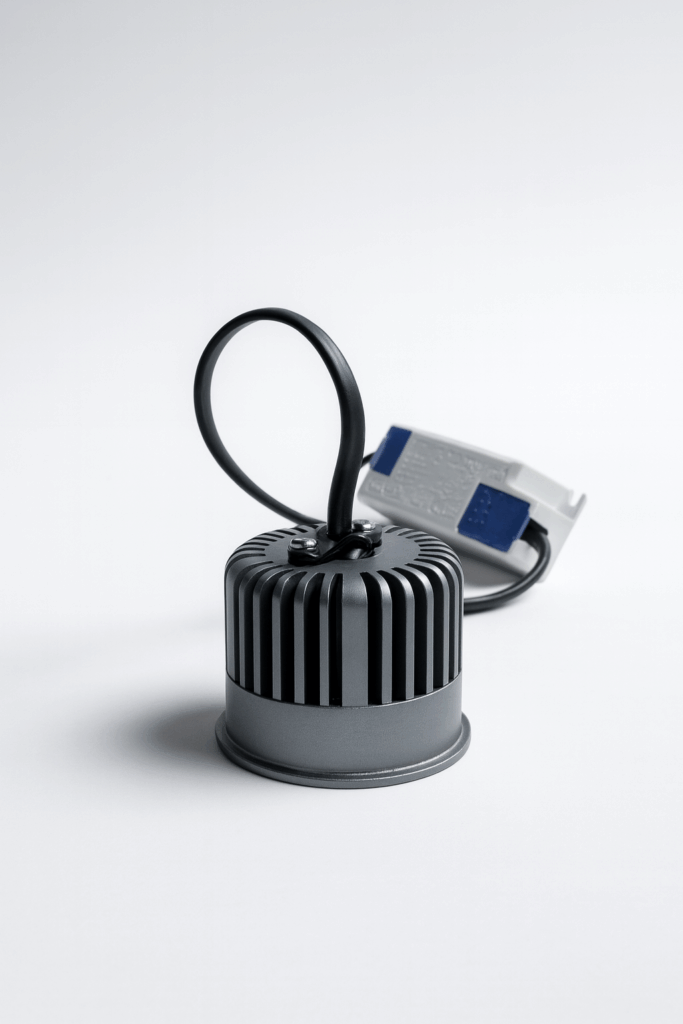

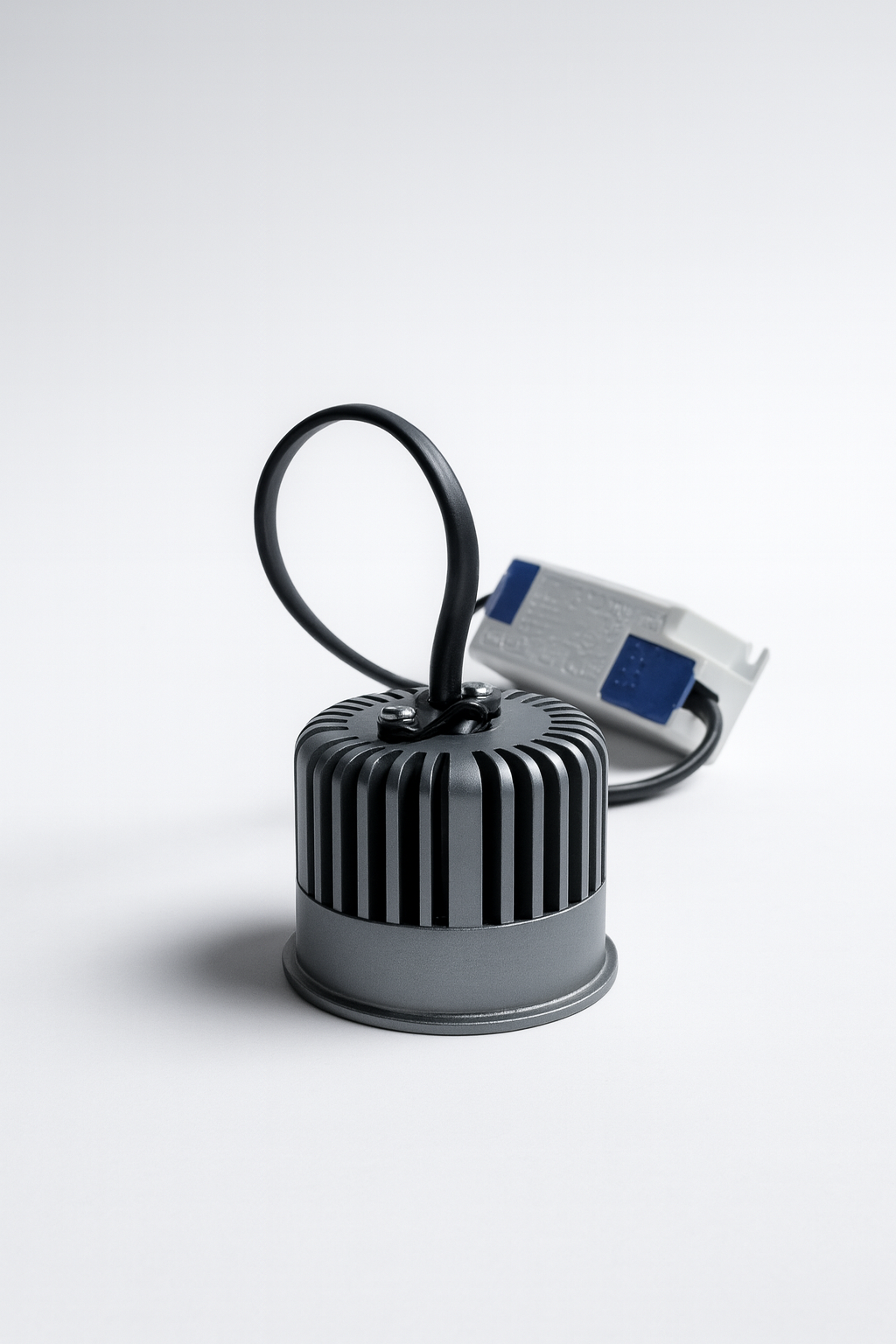

MODULE SPOT LIGHT 7W
SKU: TL-SMOD3-7W
Module Light
MODULE SPOT LIGHT 7W
SKU: TL-SMOD3-7W

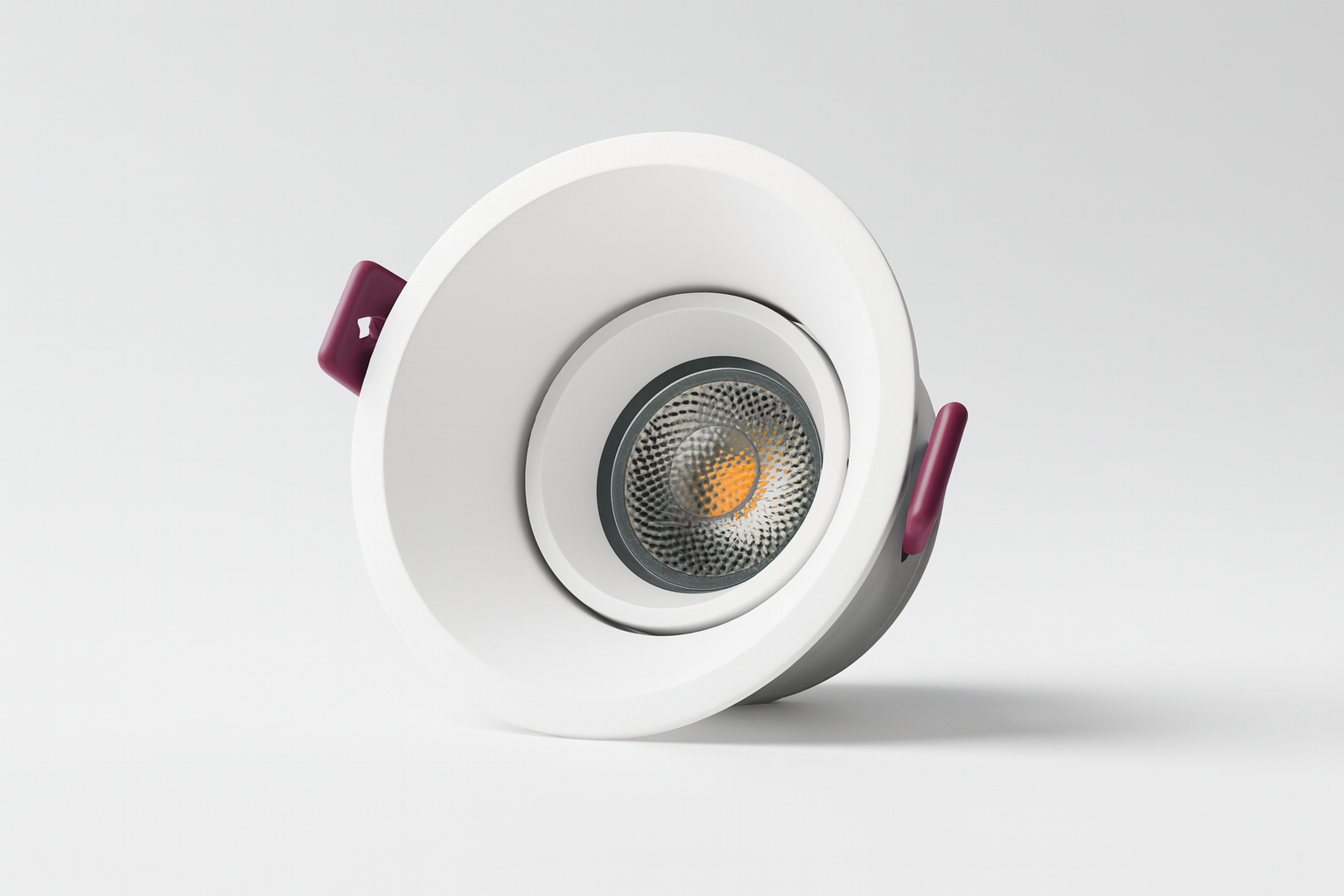

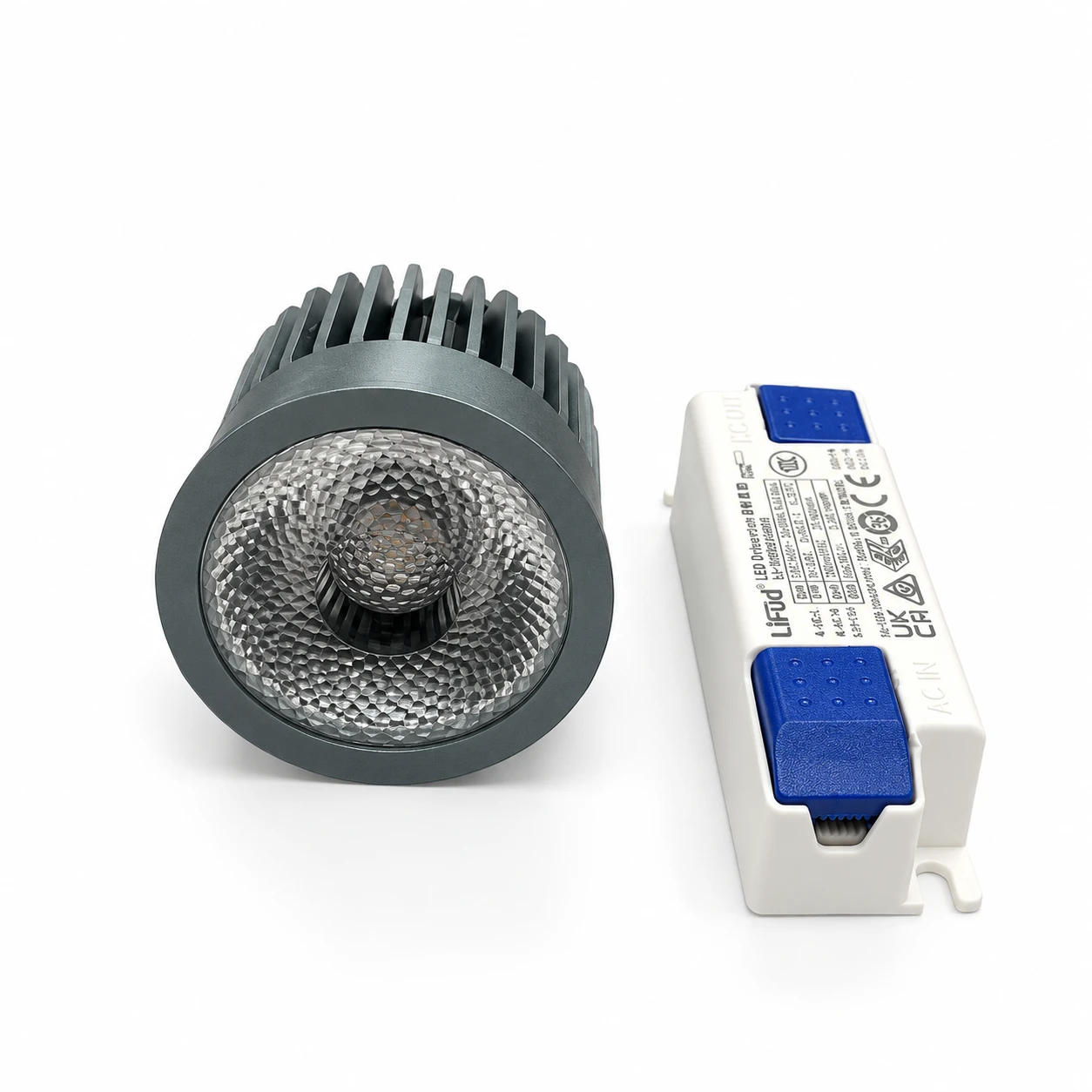

A compact 7W LED spot module designed for retail, hospitality, and office accent lighting. Featuring a premium Bridgelux LED chip and LiFUD driver, it delivers high color accuracy with CRI 95 and a focused 36° beam for clean, precise illumination. Designed for module-and-frame installation, it provides reliable performance and a 5-year warranty
WATTAGE
7W
LUMEN OUTPUT
560lm
Luminous Efficacy
80lm/W
CRI
≥95
Specifications
Watt
7W
Input Voltage
220–240V
Power Factor
0.5
Frequency
50/60 Hz
Input Current
0.1 A Max
Lumen Output
560lm
Luminous Efficacy
80lm/W
CCT
3000K / 4000K
CRI (Ra)
≥95
Beam Angle
36°
Life Span
30,000 H
Warranty
5 Years
Housing Material
Aluminum
Dimensions
Ø50 × H40 mm
Cut Size
Ø50 mm
IP Rating
IP20

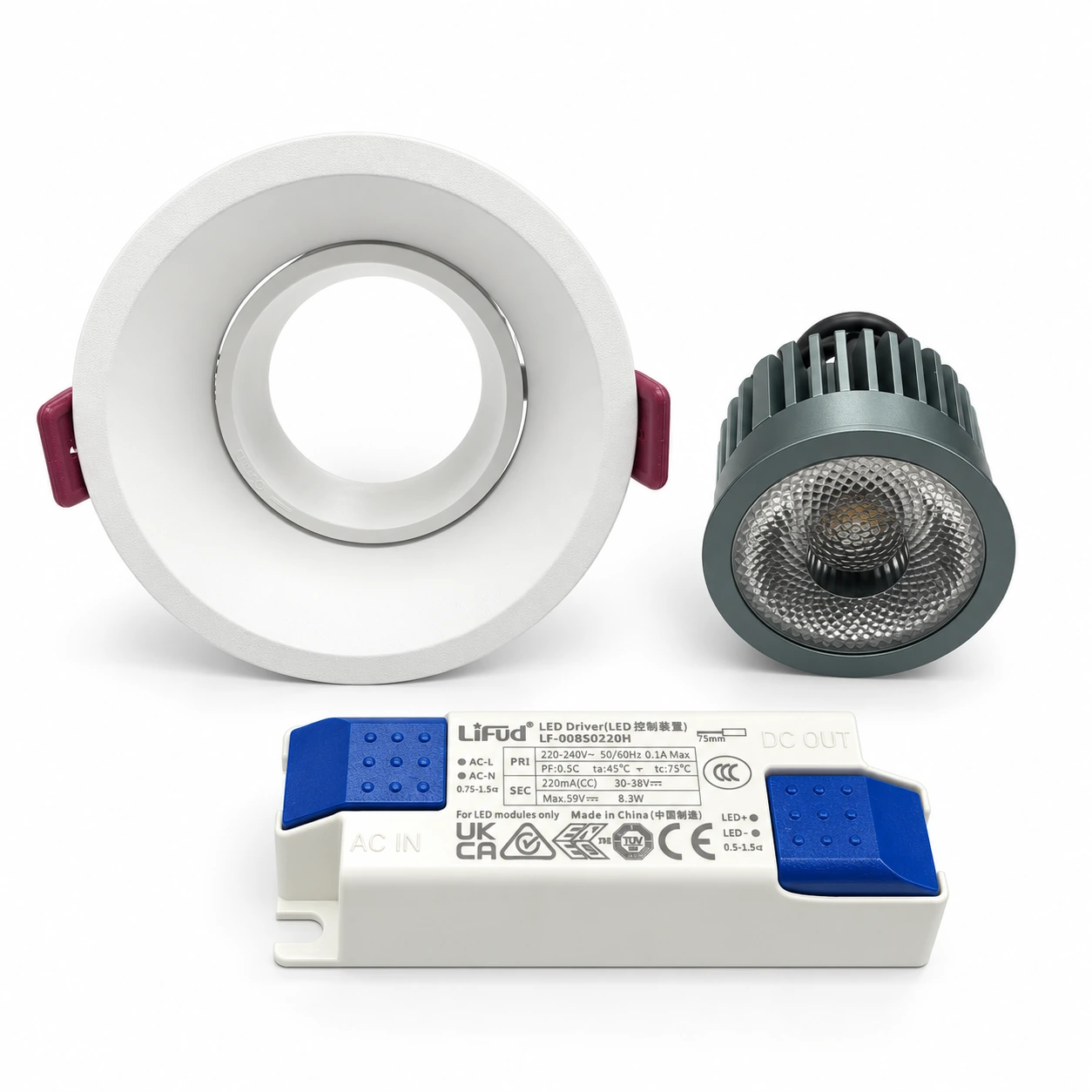

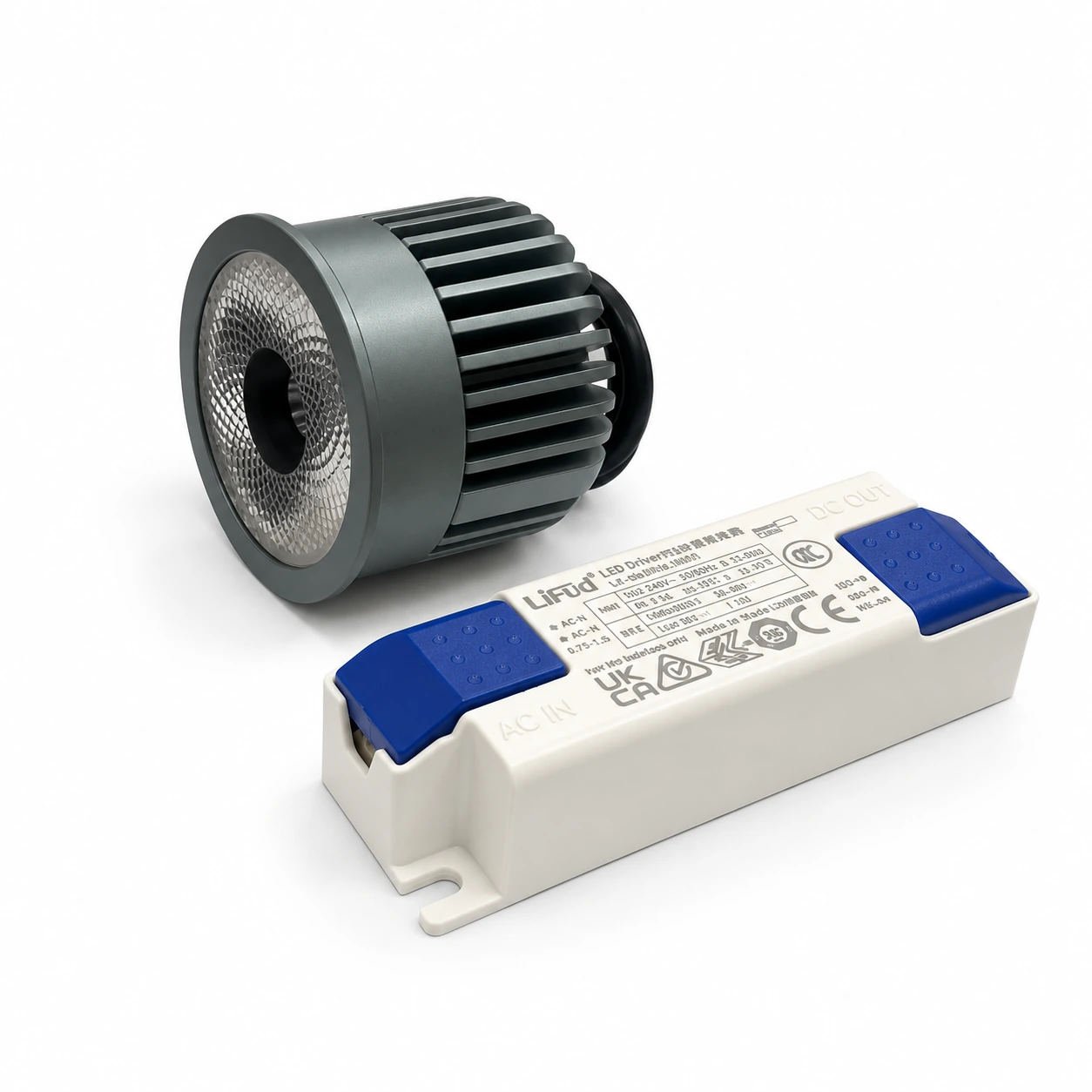

Key Components

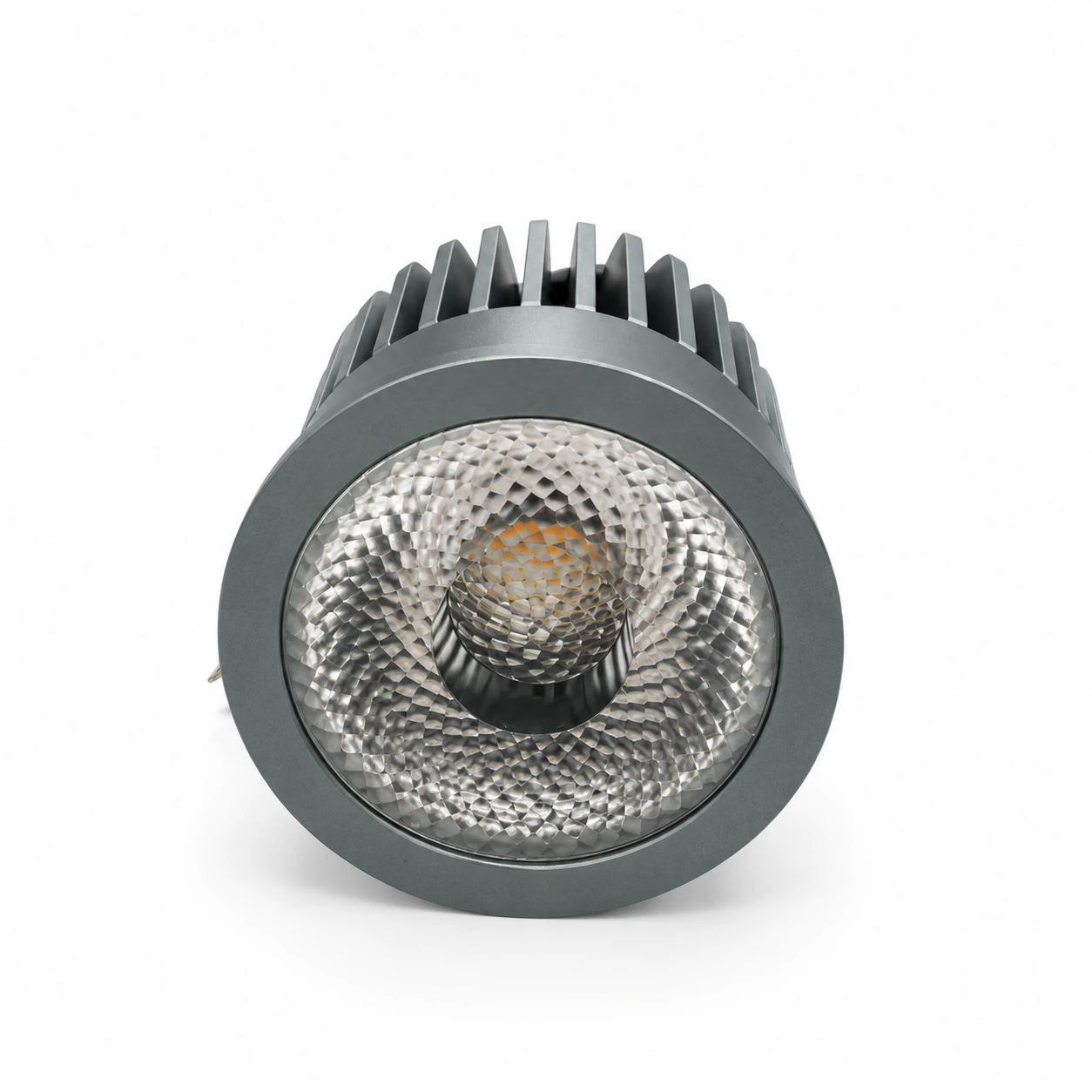

LED Chip

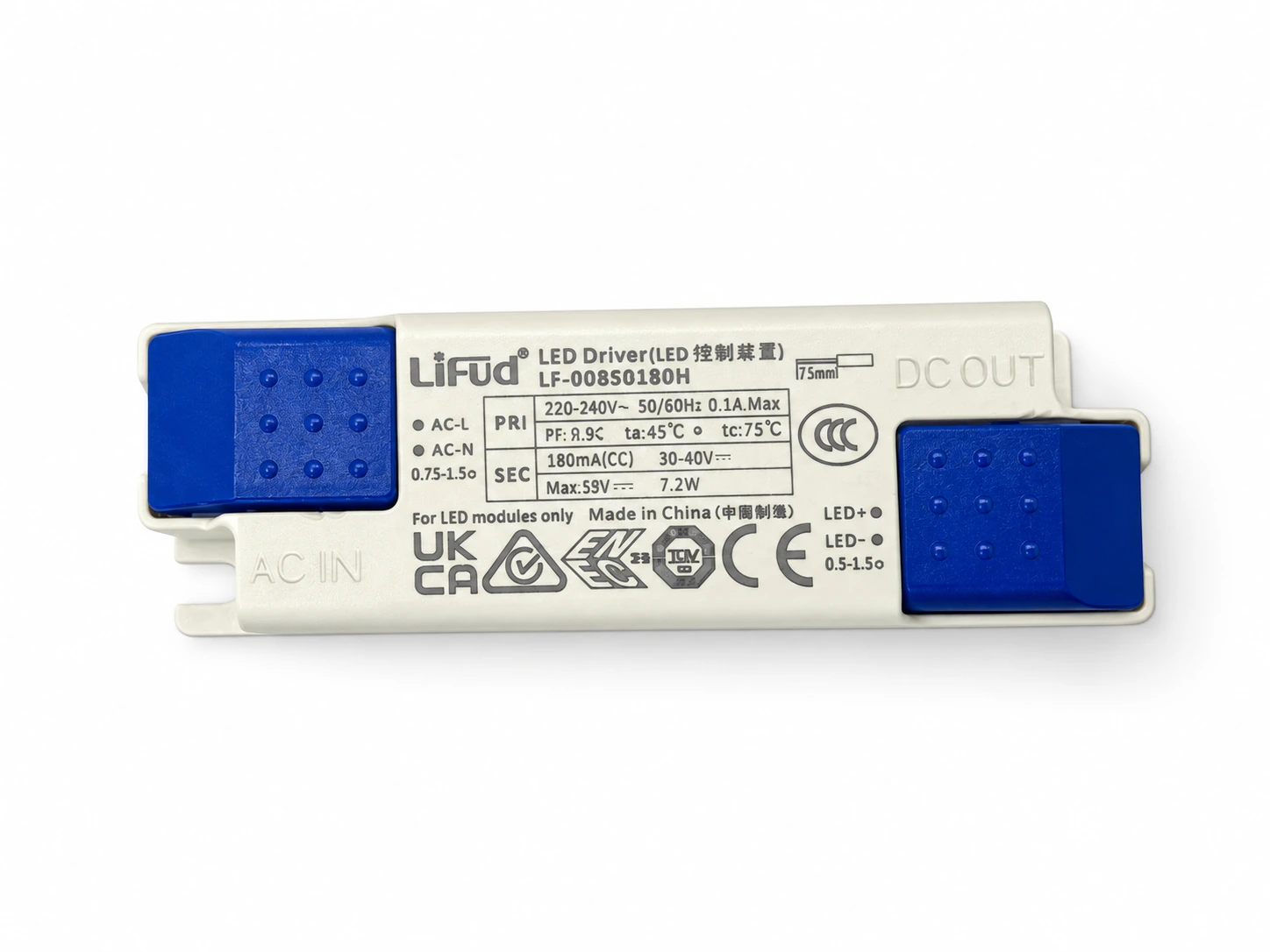

LED Driver

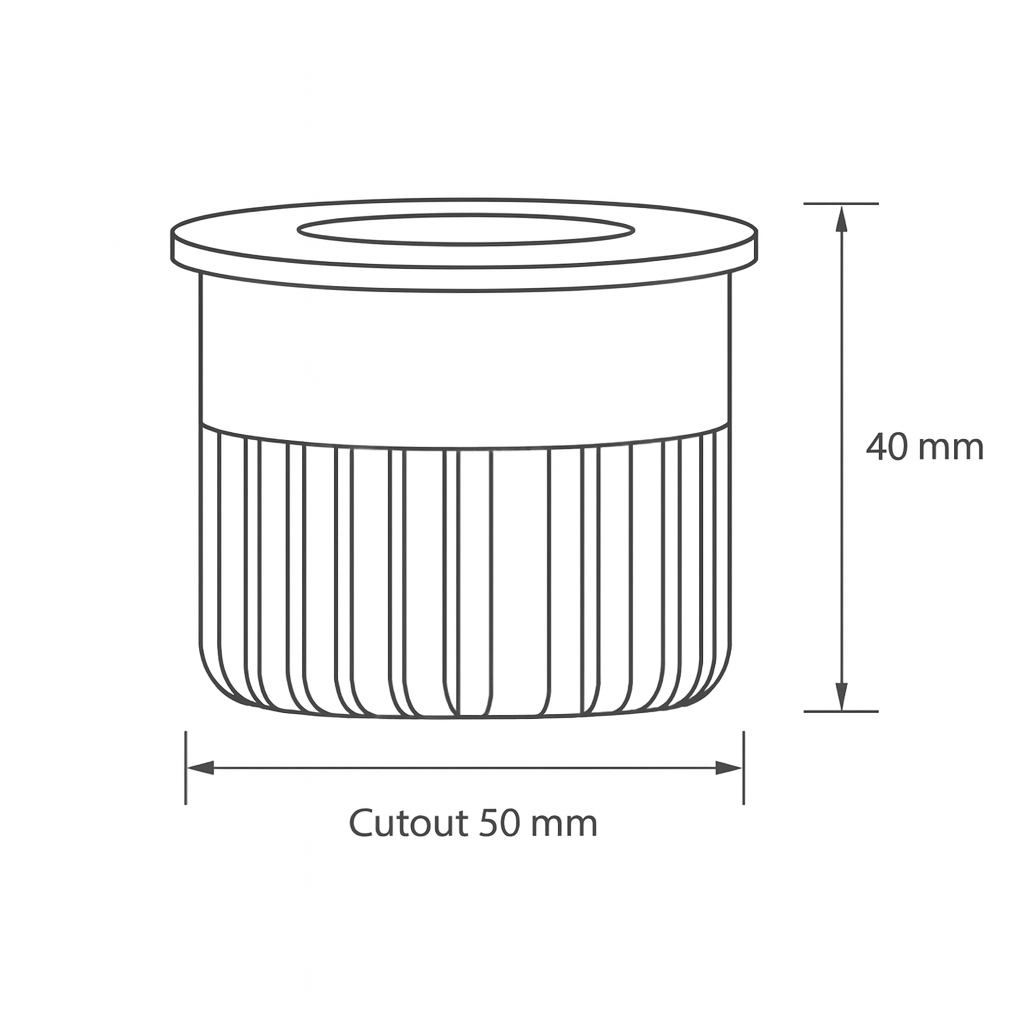

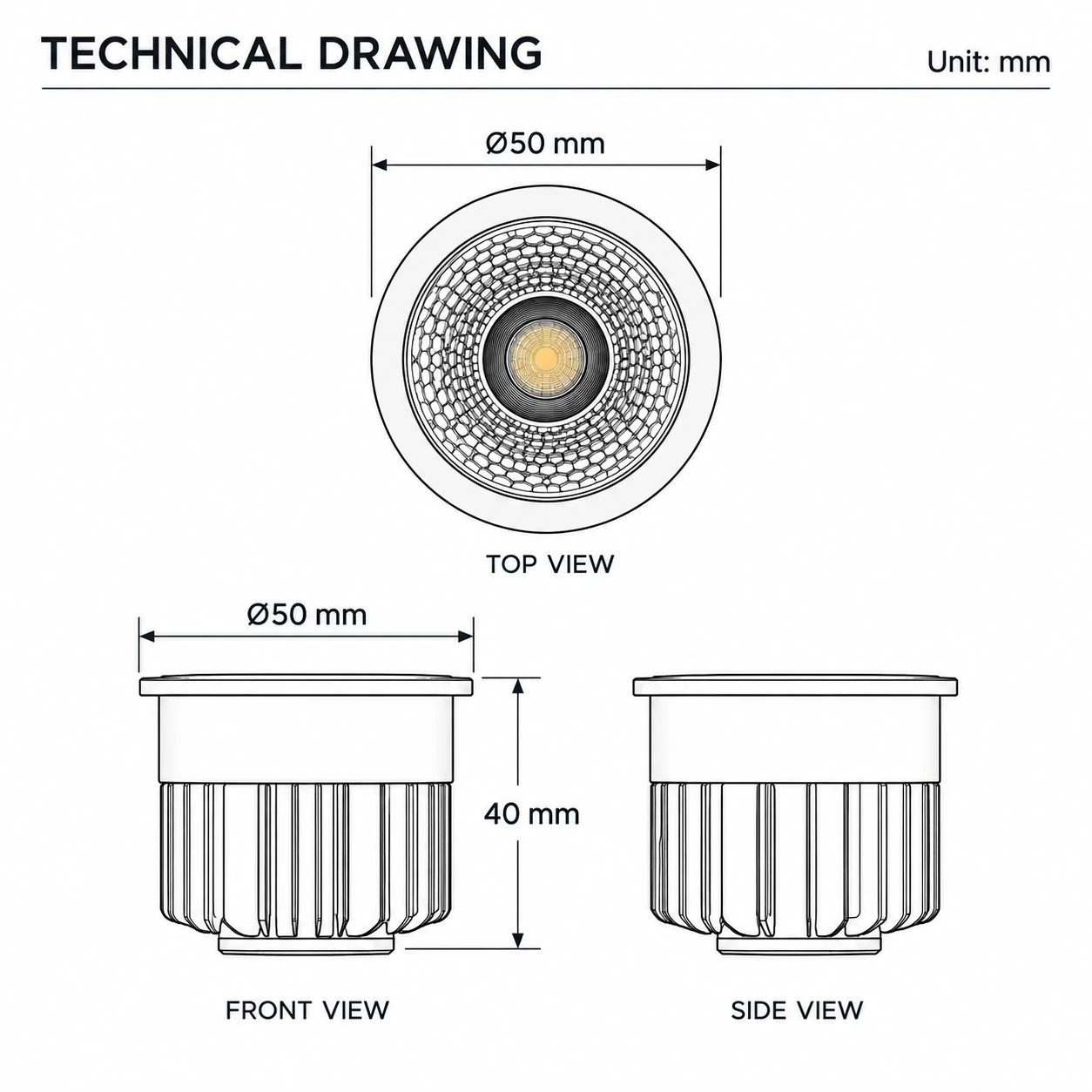

DIMENSIONS & TECHNICAL DRAWING
DIMENSIONS & CONSTRUCTION
Overall Dimensions
Ø50 × H40 mm
Cut Size
Ø50 mm
Housing
Aluminum
IP Rating
IP20
