SMD Downlight

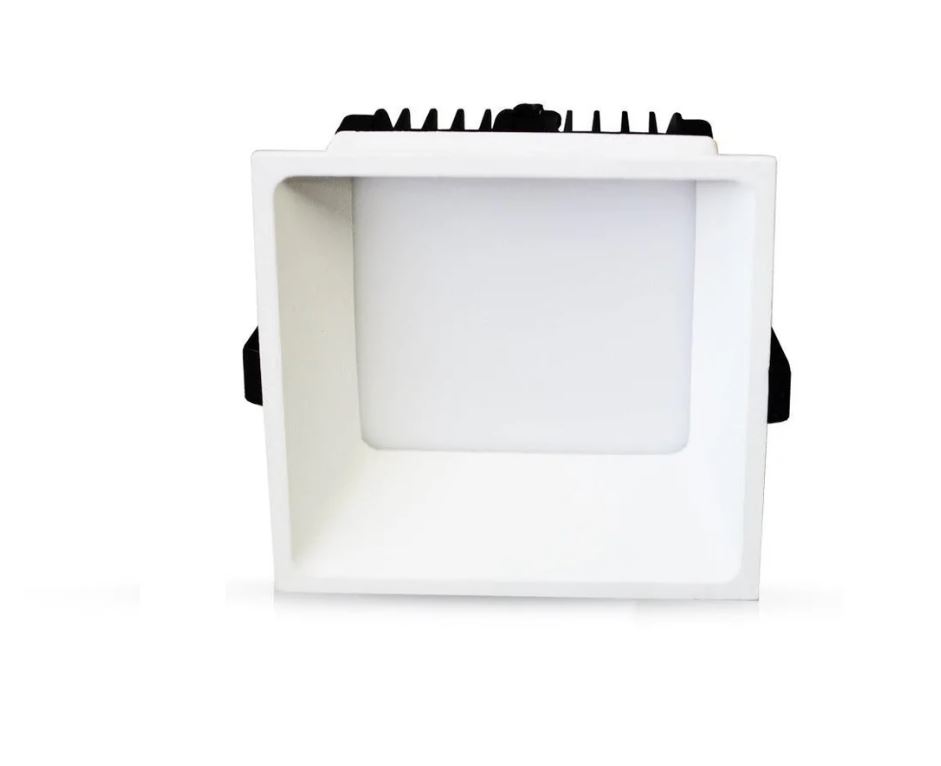

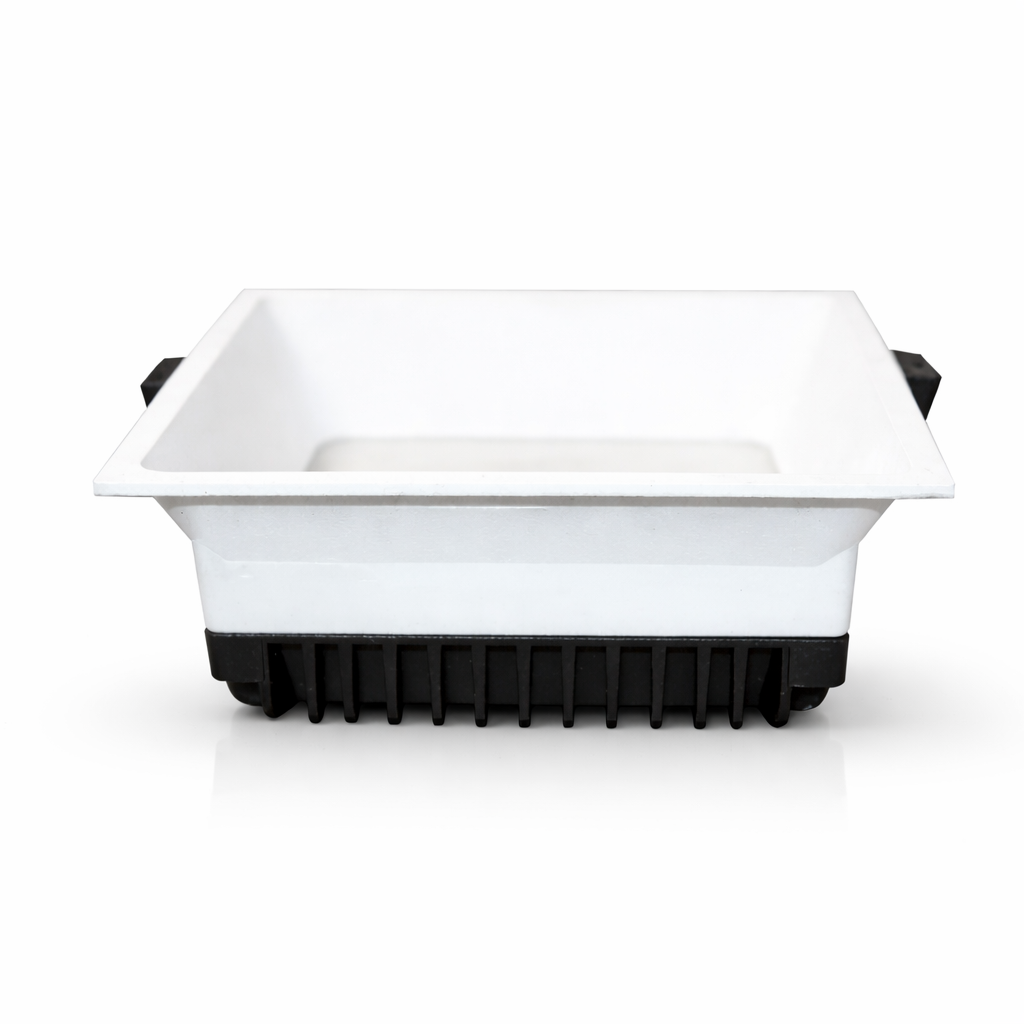

LED SMD DOWNLIGHT 18W (Square)
SKU: TL-DSMD3-S18W
SMD Downlight
LED SMD DOWNLIGHT 18W (Square)
SKU: TL-DSMD3-S18W

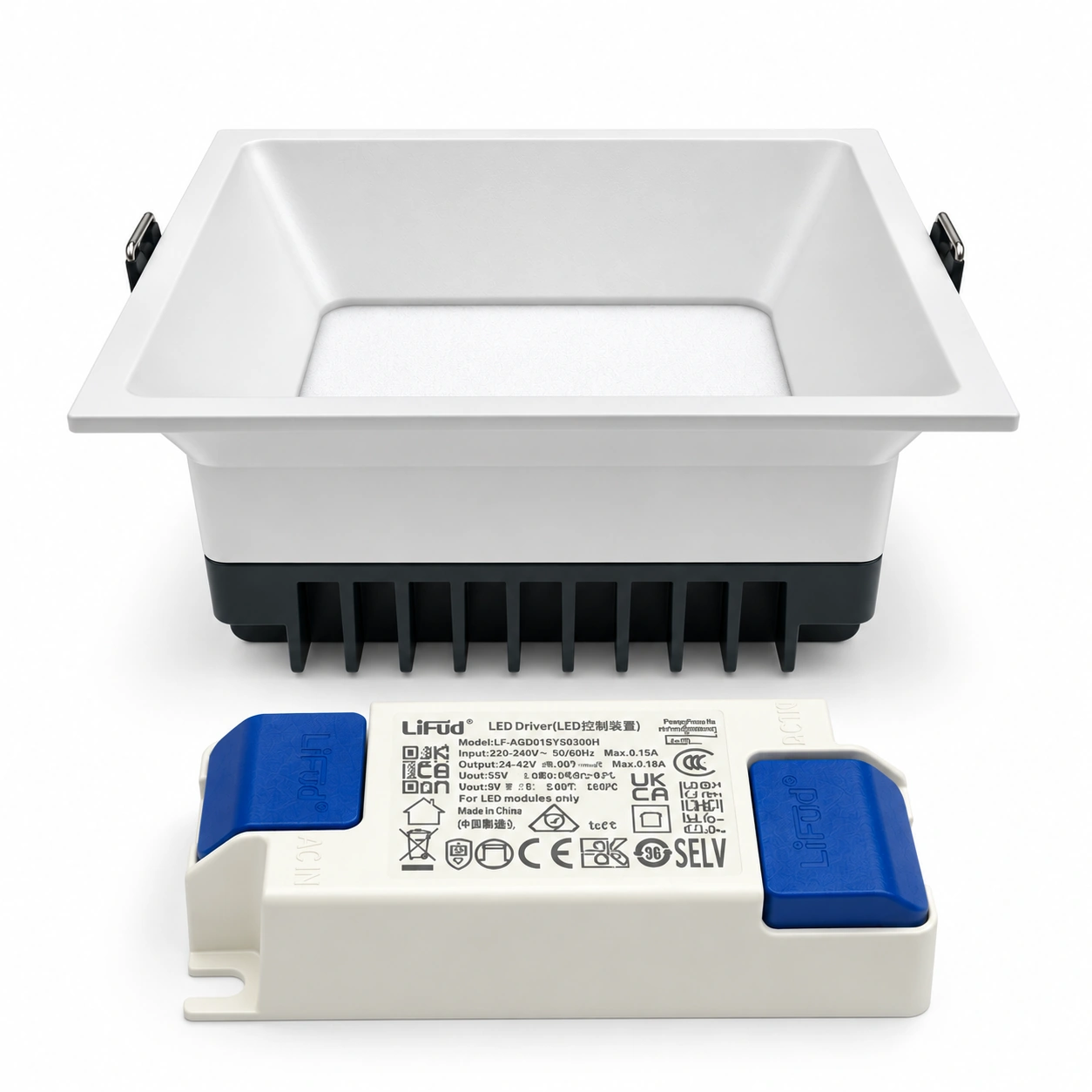

High-performance recessed SMD downlight designed for retail, office, and hospitality applications. Featuring a premium EPISTAR LED chip and LiFUD driver for efficient, uniform and high-quality illumination.
WATTAGE
18W
LUMEN OUTPUT
1620lm
Luminous Efficacy
90lm/W
CRI
≥90
Specifications
Watt
18W
Input Voltage
220–240V
Power Factor
0.5
Frequency
50/60 Hz
Input Current
0.15 A Max
Lumen Output
1620lm
Luminous Efficacy
90lm/W
CCT
3000K / 4000K
CRI (Ra)
≥90
Beam Angle
120°
Life Span
30,000 H
Warranty
3 Years
Housing Material
Die-cast Aluminum
Dimensions
D145× H53 mm
Cut Size
Ø135 mm
IP Rating
IP20
Key Components
LED Chip

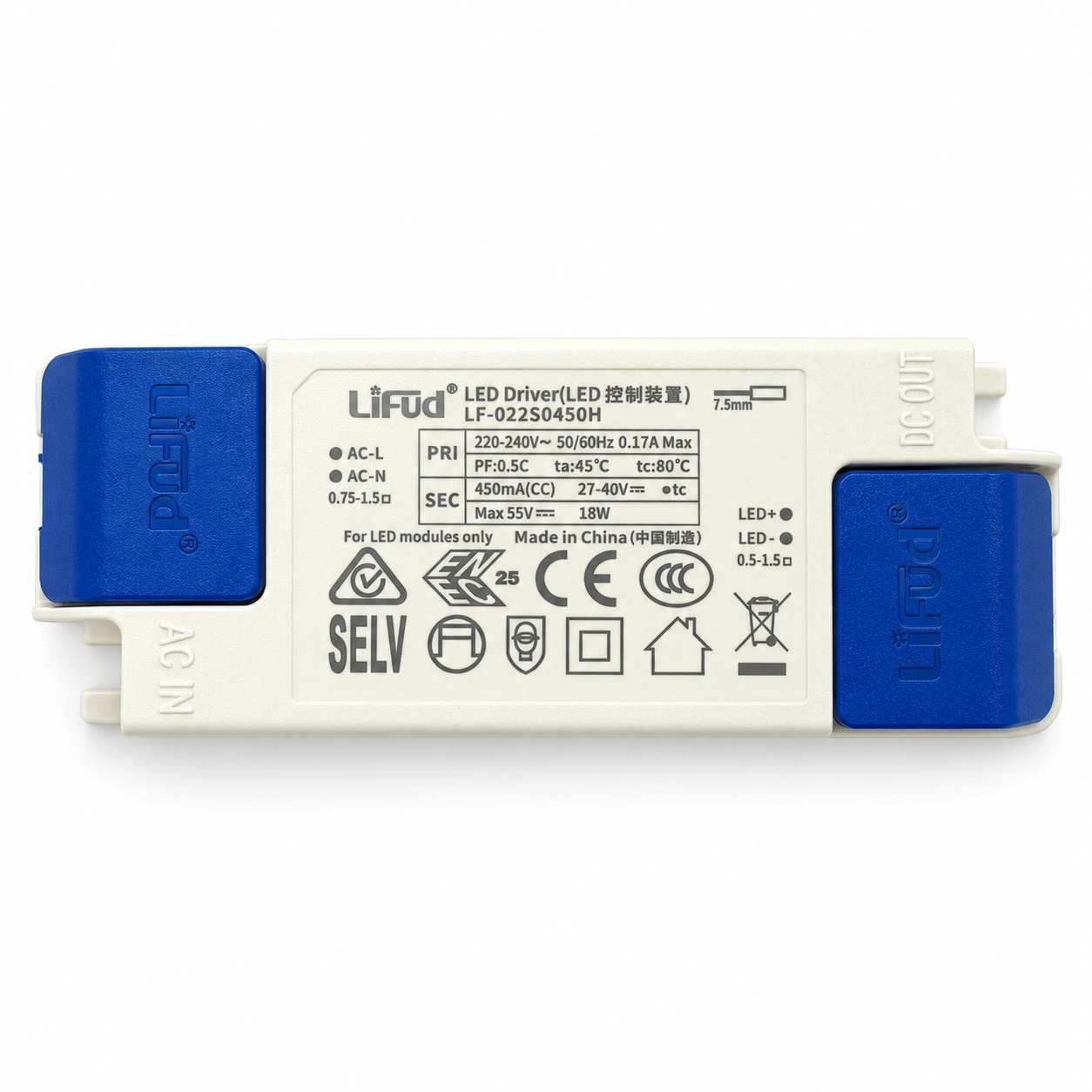

LED Driver

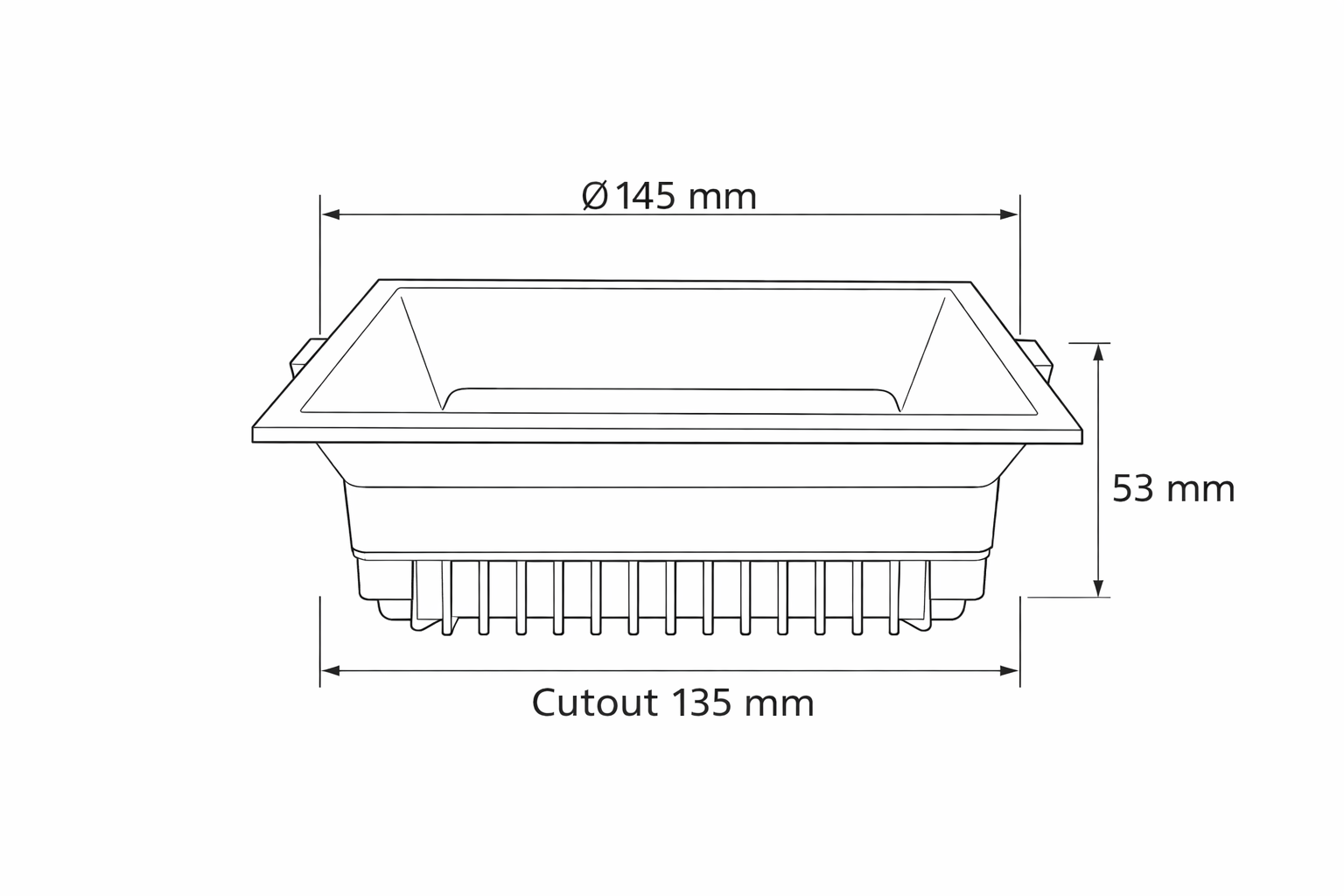

DIMENSIONS & TECHNICAL DRAWING
DIMENSIONS & CONSTRUCTION
Overall Dimensions
D145× H53 mm
Cut Size
Ø135 mm
Housing
Die-cast Aluminum
IP Rating
IP20
