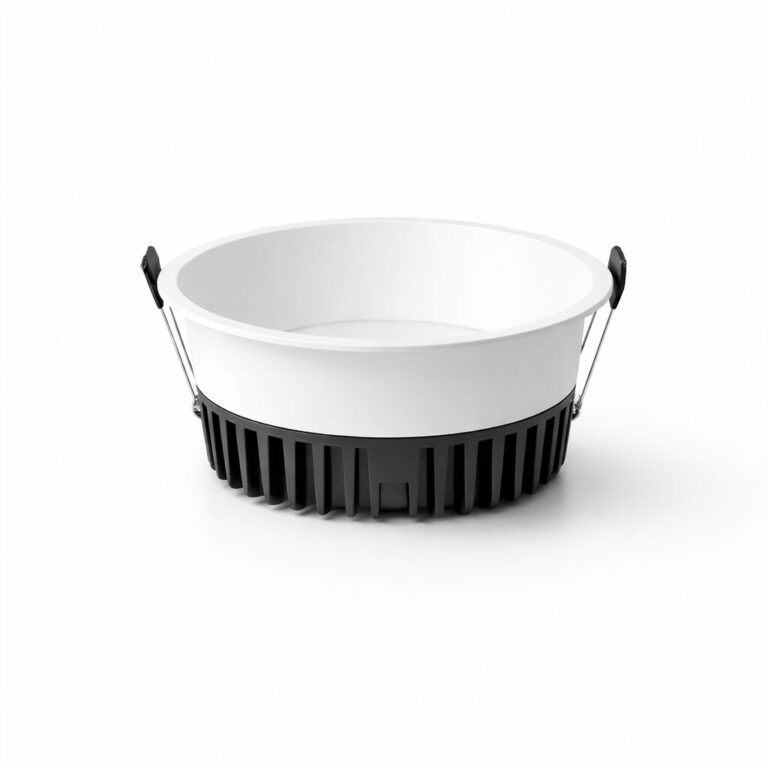

SMD Downlight
LED SMD DOWNLIGHT 24W (Round)
SKU: TL-DSMD3-24W
SMD Downlight
LED SMD DOWNLIGHT 24W (Round)
SKU: TL-DSMD3-24W
High-performance recessed SMD downlight designed for retail, office, and hospitality applications. Featuring a premium EPISTAR LED chip and LiFUD driver for efficient, uniform and high-quality illumination.
WATTAGE
24W
LUMEN OUTPUT
2160lm
Luminous Efficacy
90lm/W
CRI
≥90
Specifications
Watt
24W
Input Voltage
220–240V
Power Factor
0.5
Frequency
50/60 Hz
Input Current
0.15 A Max
Lumen Output
2160lm
Luminous Efficacy
90lm/W
CCT
3000K / 4000K
CRI (Ra)
≥90
Beam Angle
120°
Life Span
30,000 H
Warranty
3 Years
Housing Material
Die-cast Aluminum
Dimensions
D740× H54 mm
Cut Size
Ø164 mm
IP Rating
IP20
Key Components
LED Chip
LED Driver
DIMENSIONS & TECHNICAL DRAWING
DIMENSIONS & CONSTRUCTION
Overall Dimensions
D740× H54 mm
Cut Size
Ø164 mm
Housing
Die-cast Aluminum
IP Rating
IP20
