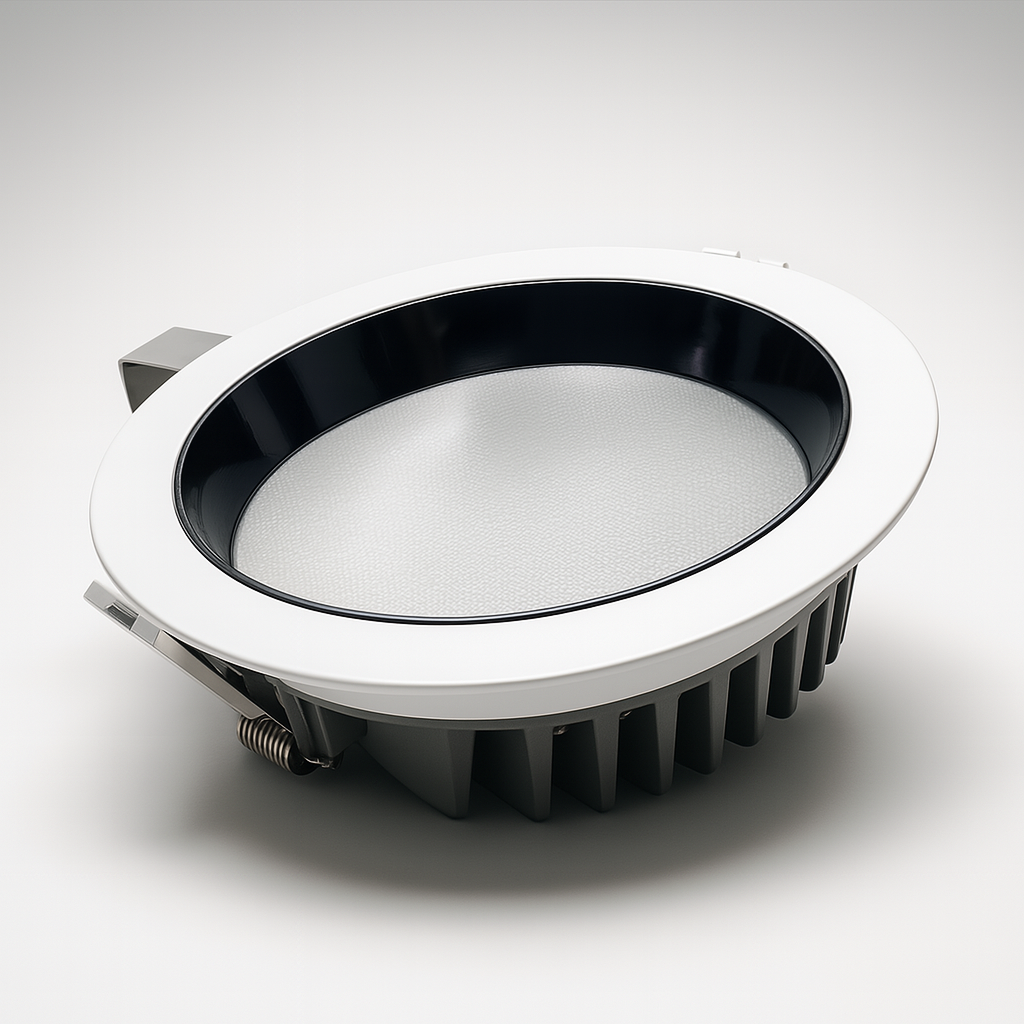

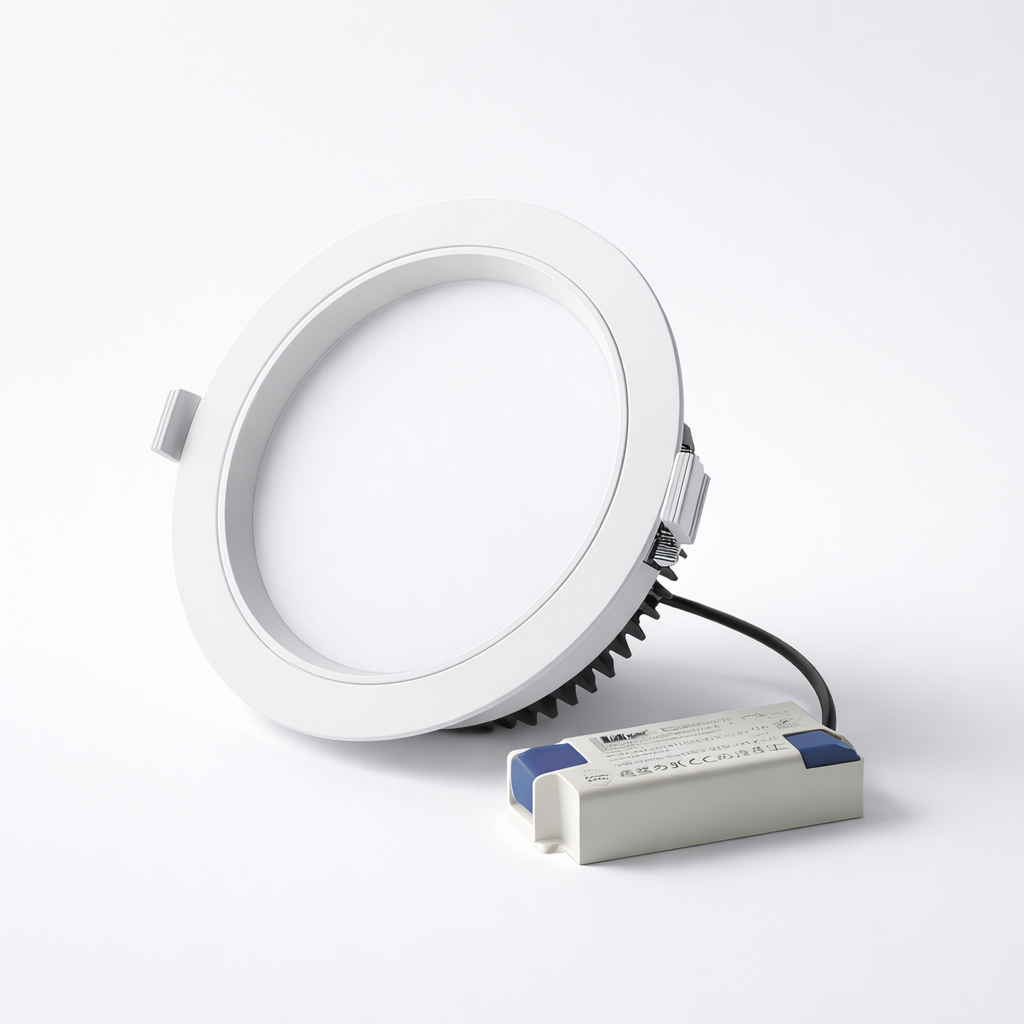

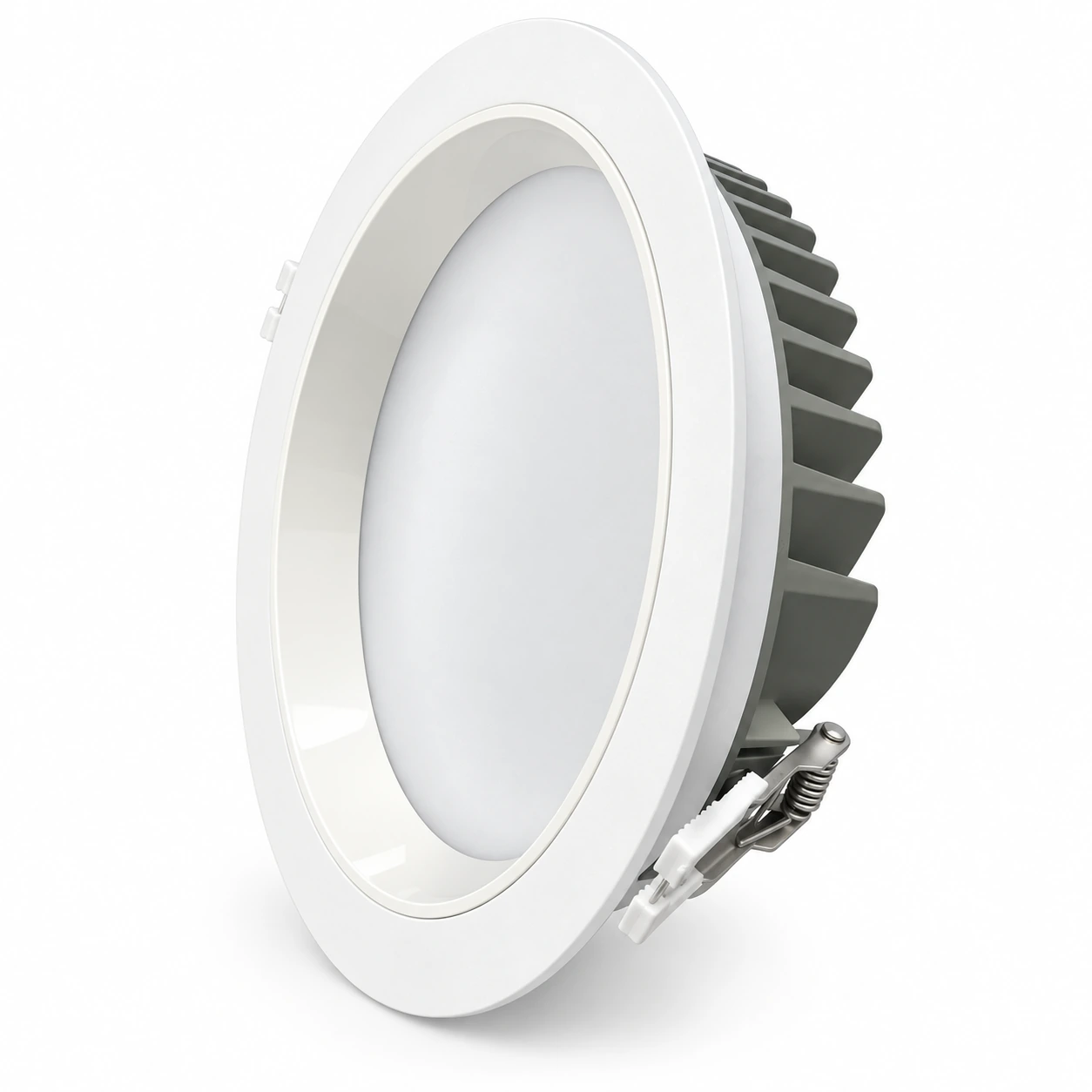

SMD Downlight
ADVANCE SMD DOWNLIGHT 24W
SKU: TL-DLADV-24W
SMD Downlight
ADVANCE SMD DOWNLIGHT 24W
SKU: TL-DLADV-24W

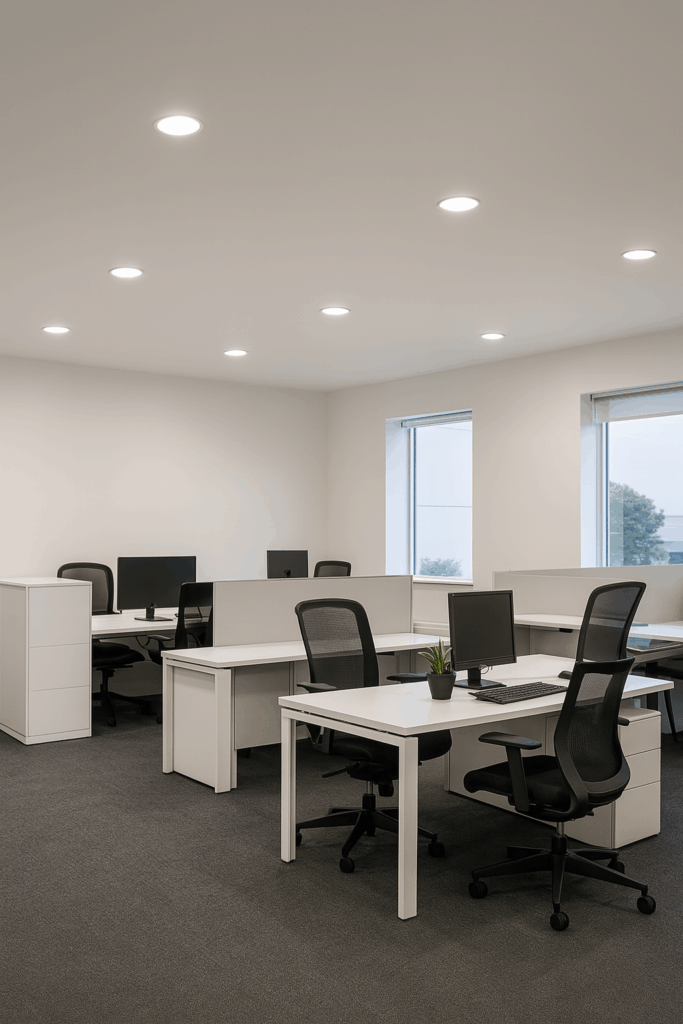

High-performance recessed SMD downlight designed for retail, office, and hospitality applications. Featuring a premium EPISTAR LED chip and LiFUD driver for efficient, accurate and flicker-free illumination.
WATTAGE
24W
LUMEN OUTPUT
1920lm
Luminous Efficacy
80lm/W
CRI
≥90
Specifications
Watt
24W
Input Voltage
220–240V
Power Factor
0.9
Frequency
50/60 Hz
Input Current
0.15 A Max
Lumen Output
1920lm
Luminous Efficacy
80lm/W
CCT
3000K / 4000K
CRI (Ra)
≥90
Beam Angle
120°
Life Span
30,000 H
Warranty
5 Years
Housing Material
Die-cast Aluminum
Dimensions
D190× H46 mm
Cut Size
Ø160 mm
IP Rating
IP54

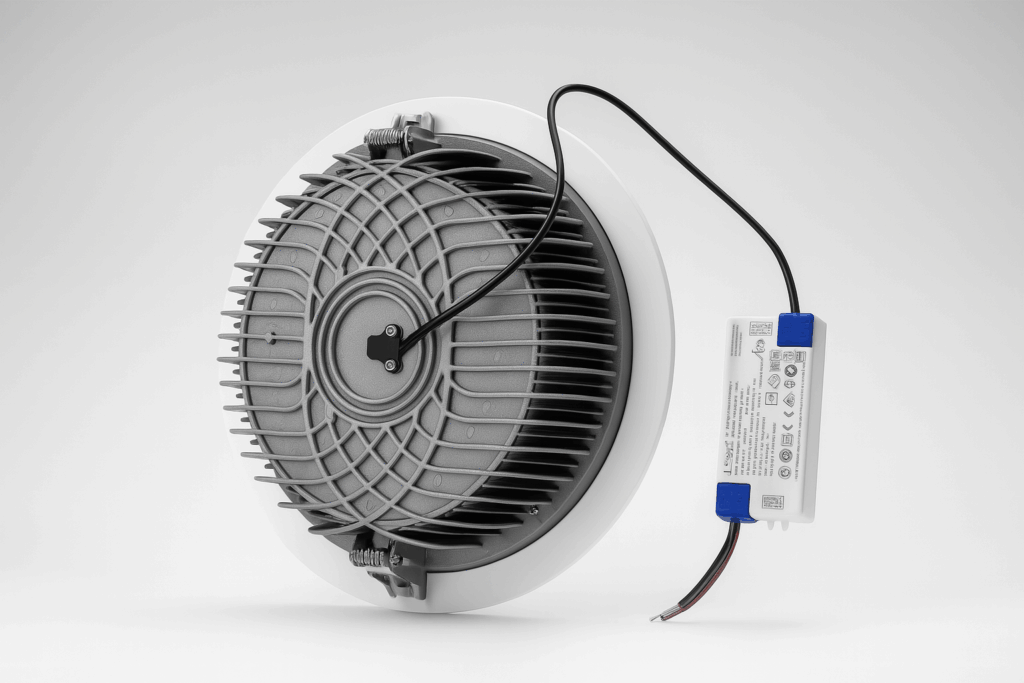

Key Components
LED Chip

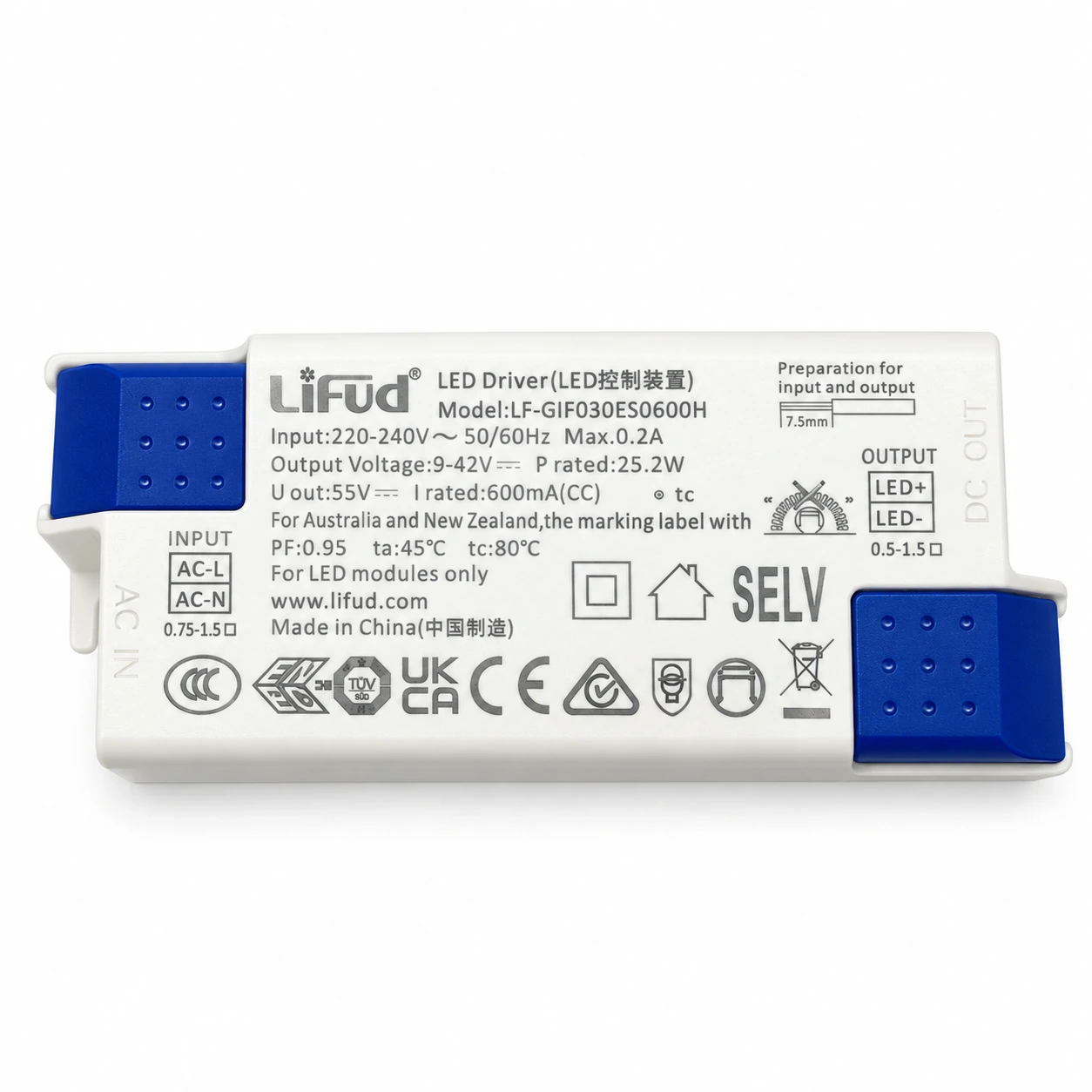

LED Driver

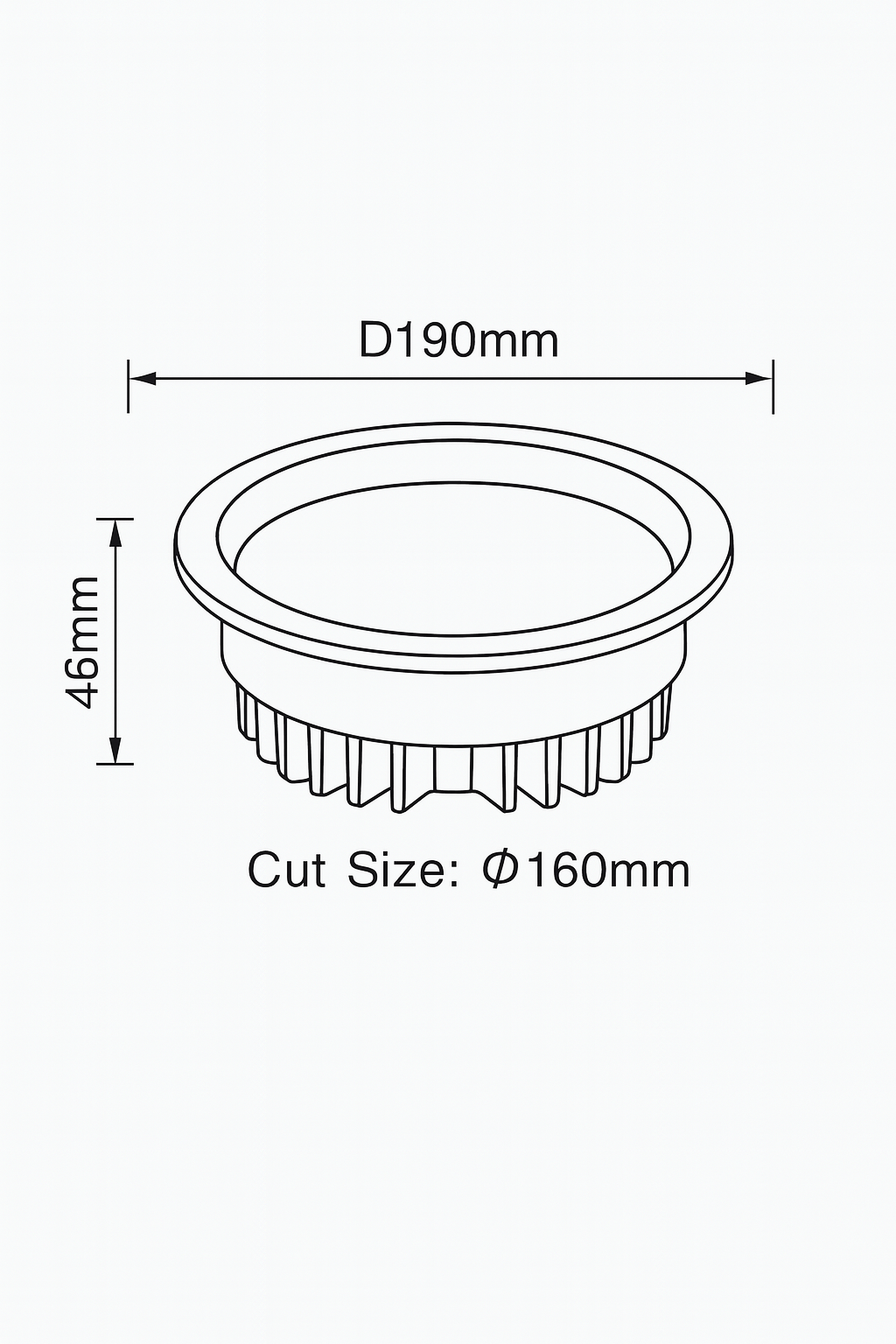

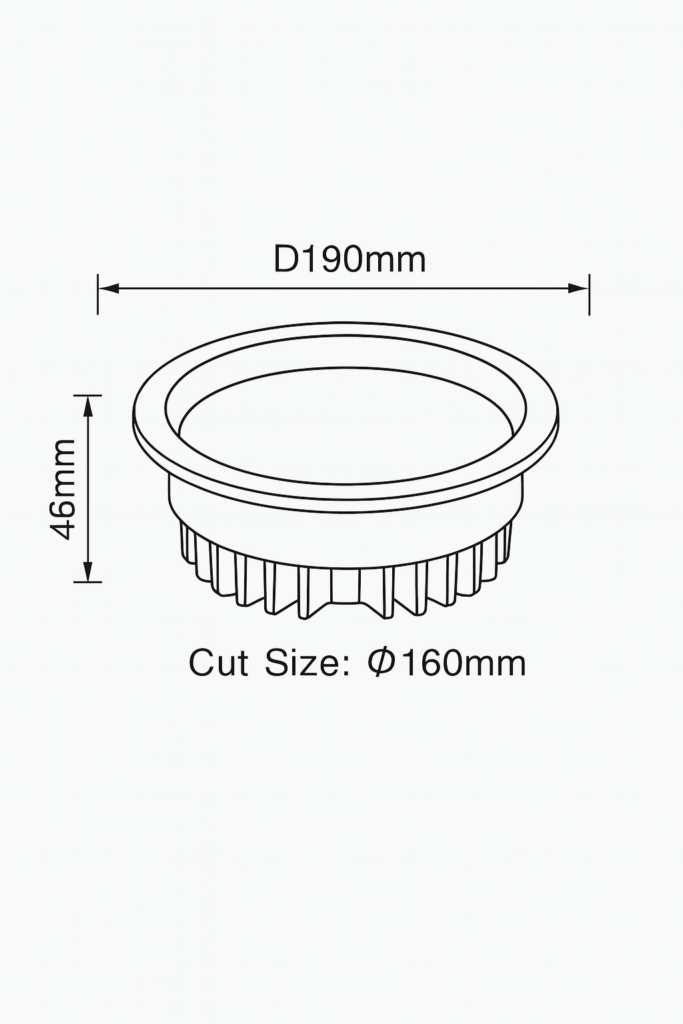

DIMENSIONS & TECHNICAL DRAWING
DIMENSIONS & CONSTRUCTION
Overall Dimensions
D190× H46 mm
Cut Size
Ø160 mm
Housing
Die-cast Aluminum
IP Rating
IP54
