Magnetic Light
Magnetic Linear Light 20W
SKU: TL-MGLFL600-20W
Magnetic Light
Magnetic Linear Light 20W
SKU: TL-MGLFL600-20W
Magnetic linear light designed for clean, uniform illumination in commercial, office, educational, and hospitality spaces. Featuring a premium OSRAM LED chip and a durable aluminum + PC housing for efficient and reliable performance.
WATTAGE
20W
LUMEN OUTPUT
1800 lm
Luminous Efficacy
90lm/W
CRI
≥90
Specifications
Watt
20W
Input Voltage
220–240V
Power Factor
0.5
Frequency
50/60 Hz
Input Current
Lumen Output
1800 lm
Luminous Efficacy
90lm/W
CCT
3000K / 4000K
CRI (Ra)
≥90
Beam Angle
120°
Life Span
30,000 H
Warranty
3 Years
Housing Material
Aluminum + PC
Dimensions
L600 X W22 X H44
Cut Size
IP Rating
IP20
Key Components
LED Chip
LED Driver

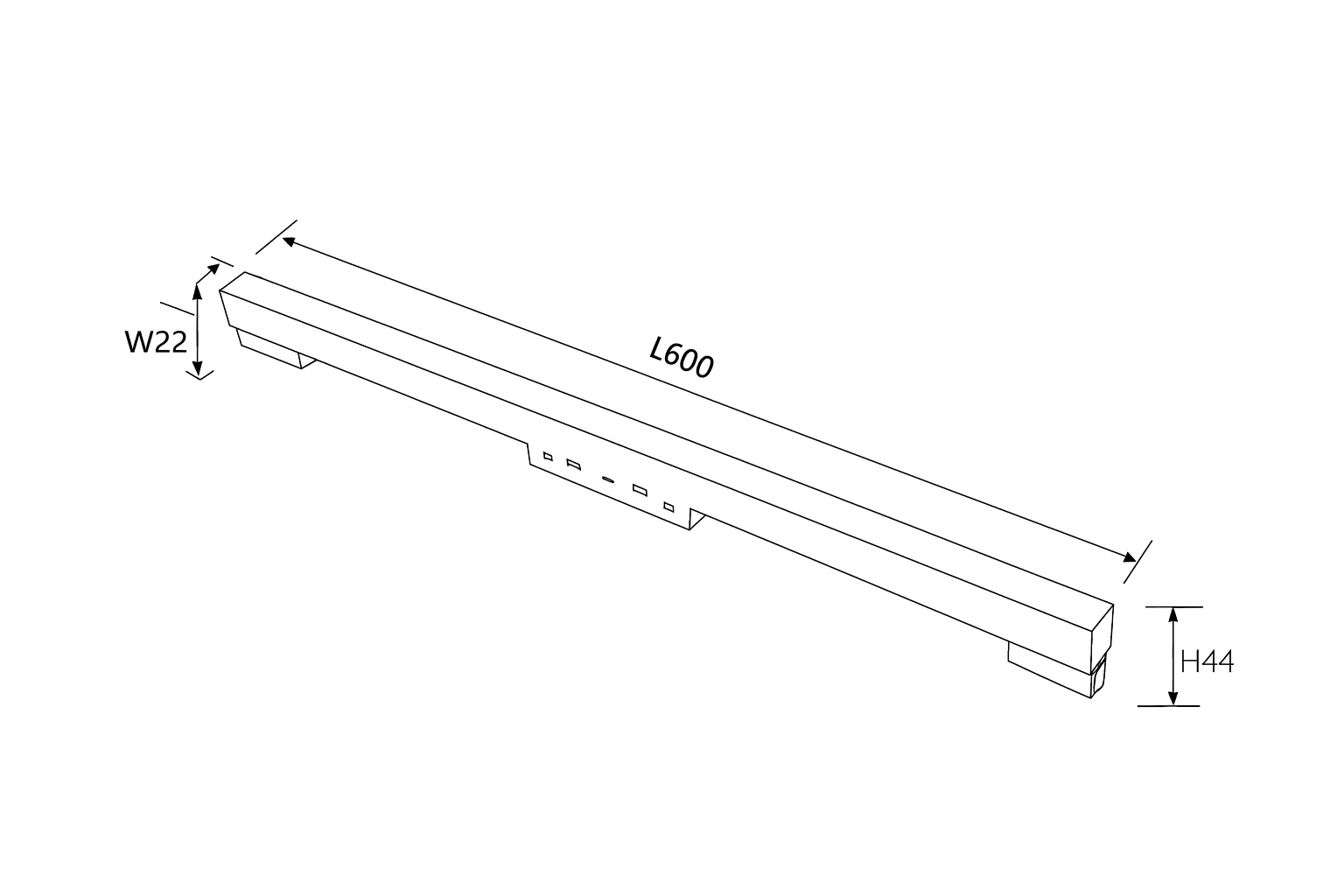

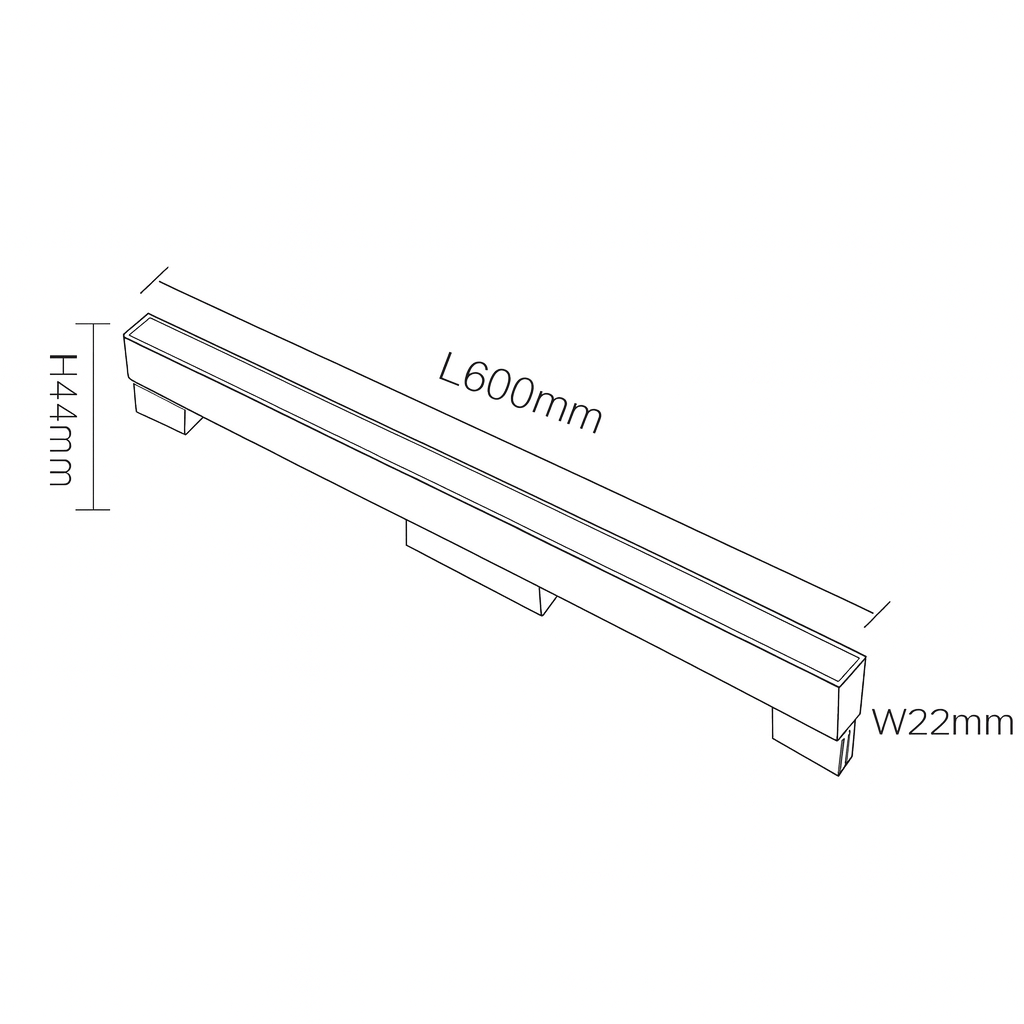

DIMENSIONS & TECHNICAL DRAWING
DIMENSIONS & CONSTRUCTION
Overall Dimensions
L600 X W22 X H44
Cut Size
Housing
Aluminum + PC
IP Rating
IP20
