COB PROJECT DOWNLIGHT 12W
SKU: TL-CPRO3-12W
COB Downlight
COB PROJECT DOWNLIGHT 12W
SKU: TL-CPRO3-12W
High-performance 12W recessed COB downlight designed for retail, office, and hospitality applications. Powered by a premium LEDVANCE LED chip with a LiFUD driver, delivering 1320 lumens at 110 lm/W with CRI 90 for efficient, accurate and flicker-free illumination.
WATTAGE
12W
LUMEN OUTPUT
1320lm
Luminous Efficacy
110lm/W
CRI
≥90
Specifications
Watt
12W
Input Voltage
220–240V
Power Factor
0.5
Frequency
50/60 Hz
Input Current
0.15 A Max
Lumen Output
1320lm
Luminous Efficacy
110lm/W
CCT
3000K / 4000K
CRI (Ra)
≥90
Beam Angle
55°
Life Span
30,000 H
Warranty
5 Years
Housing Material
Die-cast Aluminum
Dimensions
D83 × H65 mm
Cut Size
Ø75 mm
IP Rating

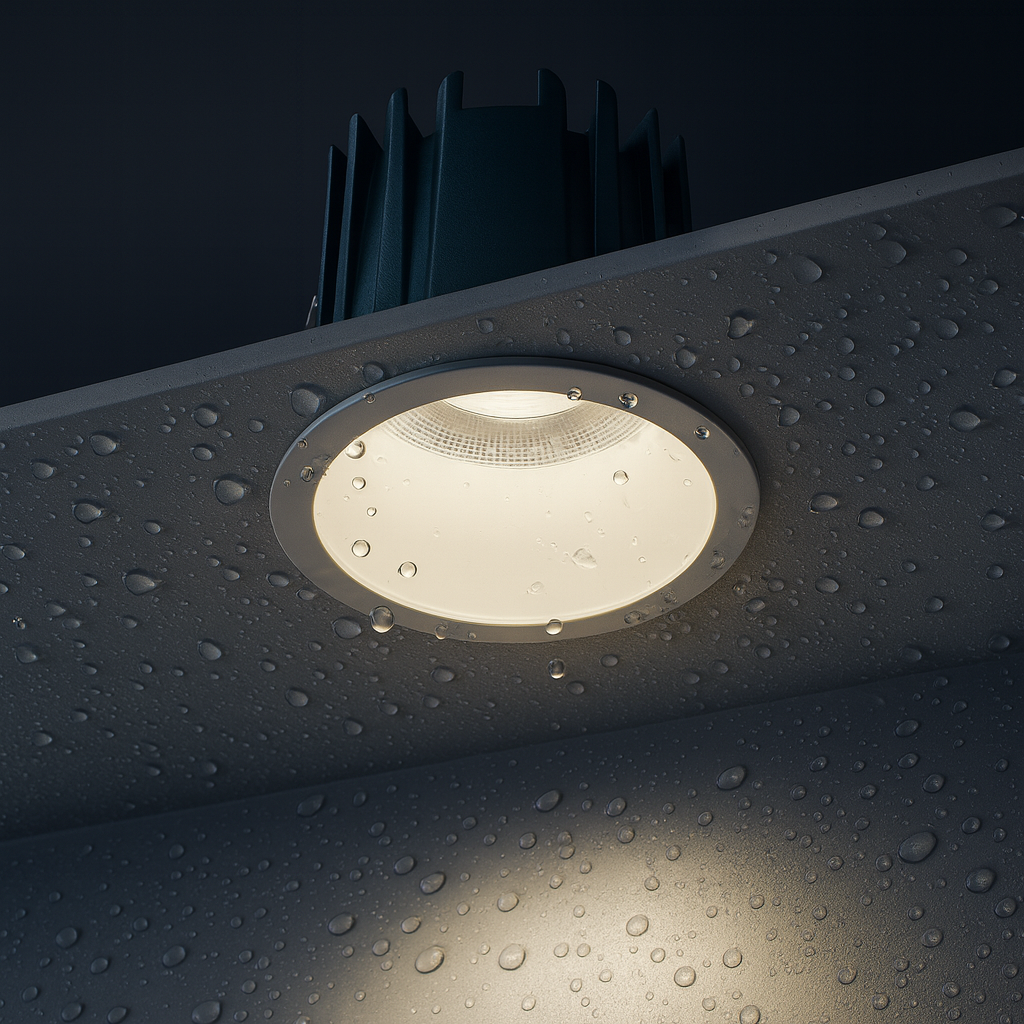

IP54
Key Components
LED Chip

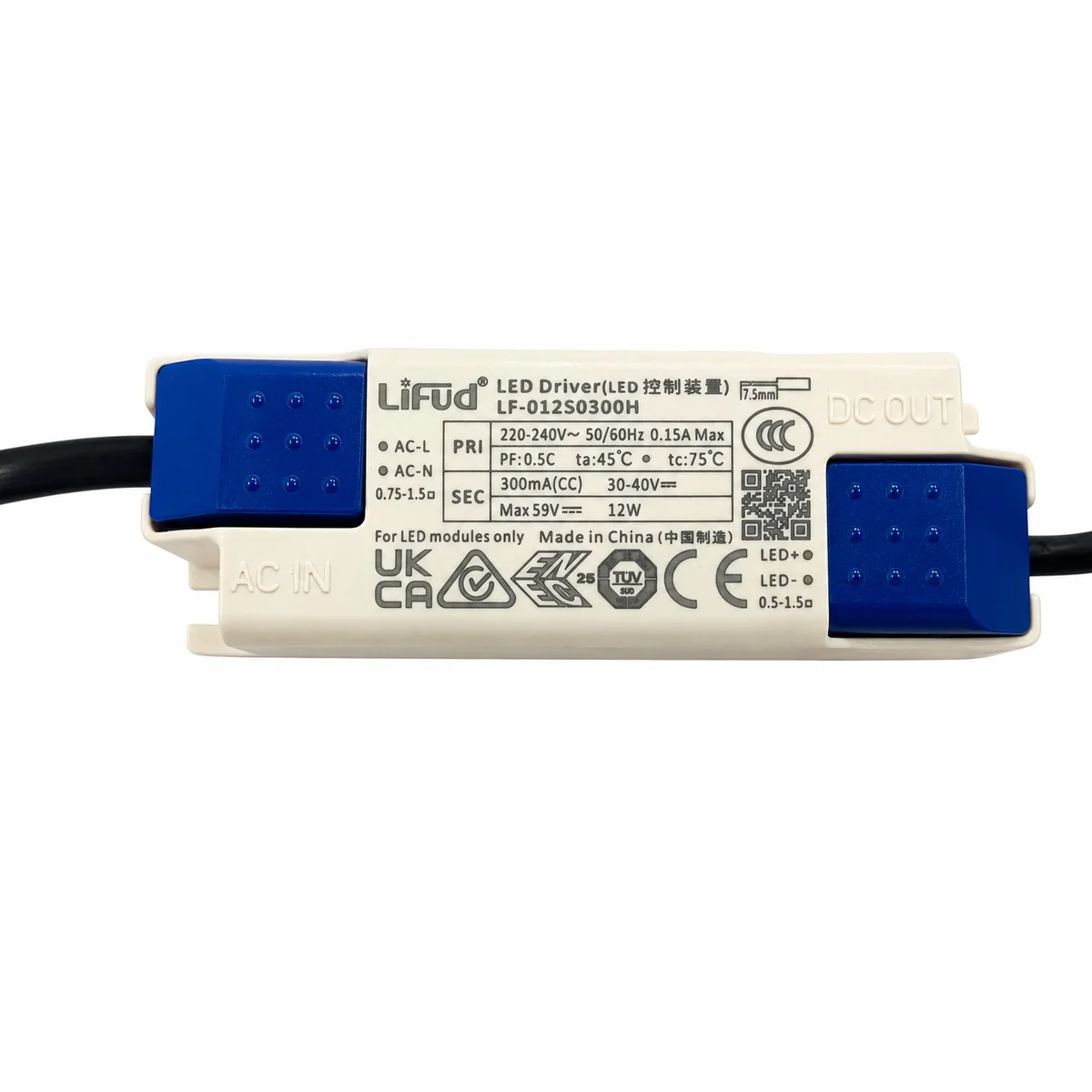

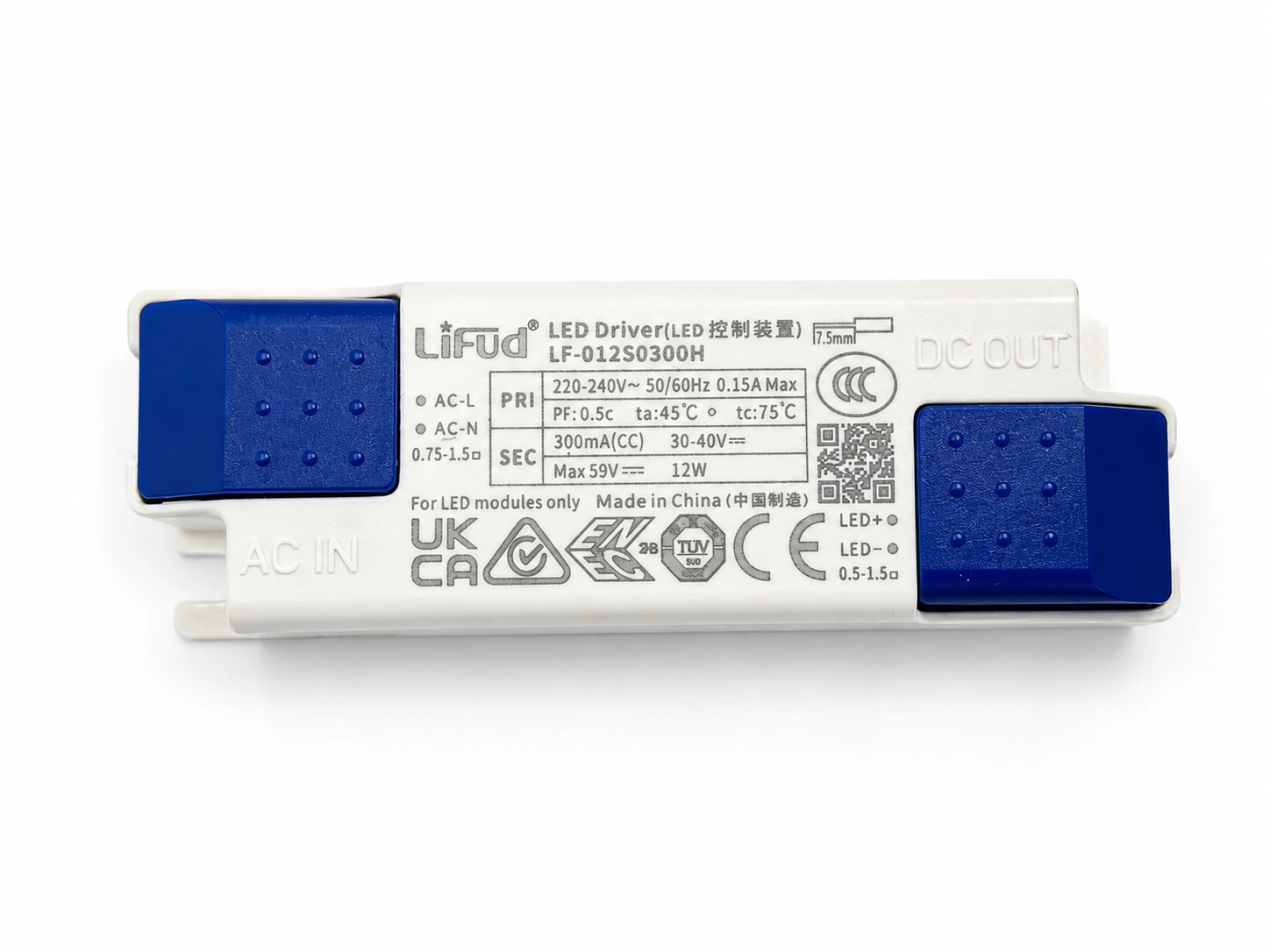

LED Driver

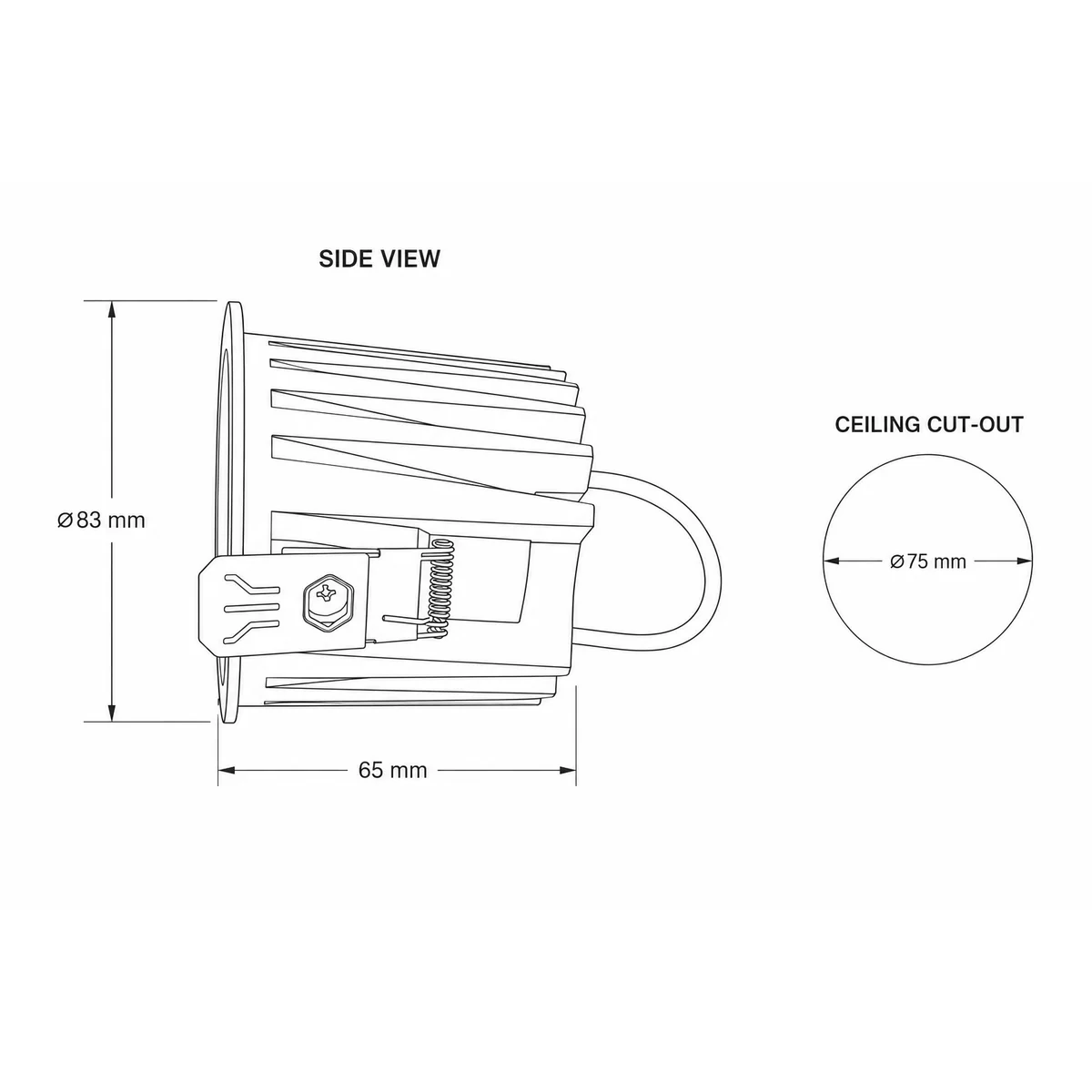

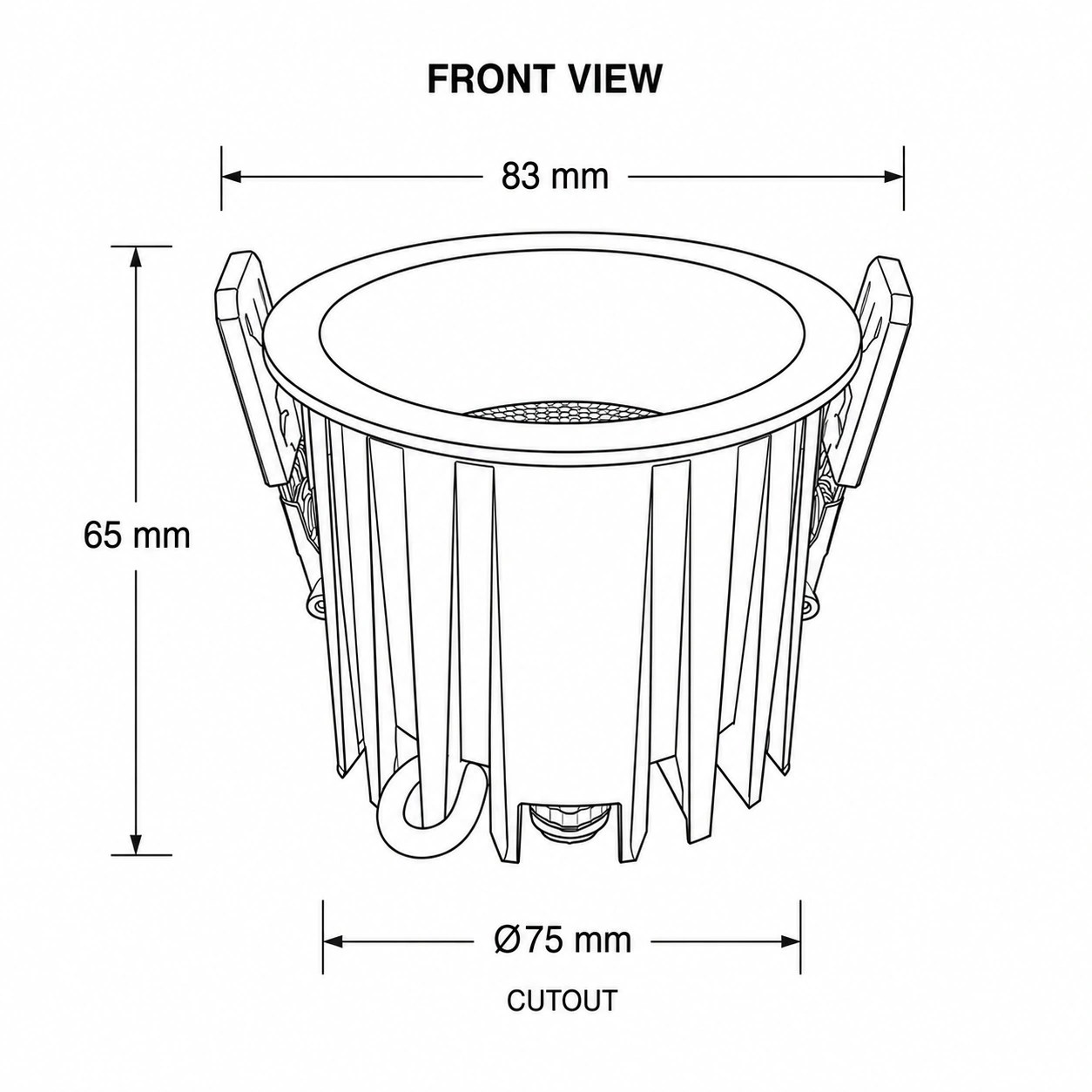

DIMENSIONS & TECHNICAL DRAWING
DIMENSIONS & CONSTRUCTION
Overall Dimensions
D83 × H65 mm
Cut Size
Ø75 mm
Housing
Die-cast Aluminum
IP Rating
IP54
