Aluminum Framed Lights
Frame 07 / 08
3000K
3500K
4000K



CREE COB

Philips Driver
Power 12w 15w
Size D70 x H78 mm D90 x H90 mm
CRI 80 90
Bean Angle 36° 36°
PF 0.95 0.95
Lumen 960 Lm 1200 Lm
Material Aluminum + PC Aluminum + PC



Model 7



Model 7 Single Round
Power 12W 15W
Size 85 x H42 mm 110 x H42 mm
Cutout 75 mm 95 mm

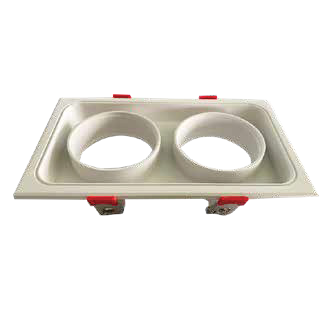

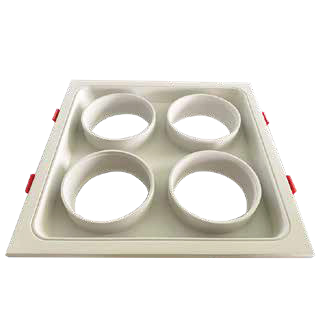

Model 7 Square Single Double Tripple Quadra
Power 12W 12W x 2 12W x 3 12W x 4
Size 88 x 88 H27 mm 168 x 88 x H27 mm 247 x 88 x H27 mm 168 x 168 H27 mm
Cut Out 75 x 75 mm 160 x 75 mm 240 x 75 mm 160 x 160 mm
Power 15W 15W x 2 15 x 3 15 x 4
Size 115 x 115 H30 216 x 115 x H30 316 x 115 x H30 mm 216 x 216 x H30 mm
Cut Out 95 x 95 mm 200 x 95 mm 300 x 95 mm 200 x 200 mm



Model 8



Model 8 Square Single Double Quadra
Power 12W 12W x 2 12W x 4
Size 118 x 118 x H33 mm 205 x 118 H33 mm 209 x 209 x H33
Cut Out 100 x 100 mm 185 x 100 mm 185 x 185 mm
